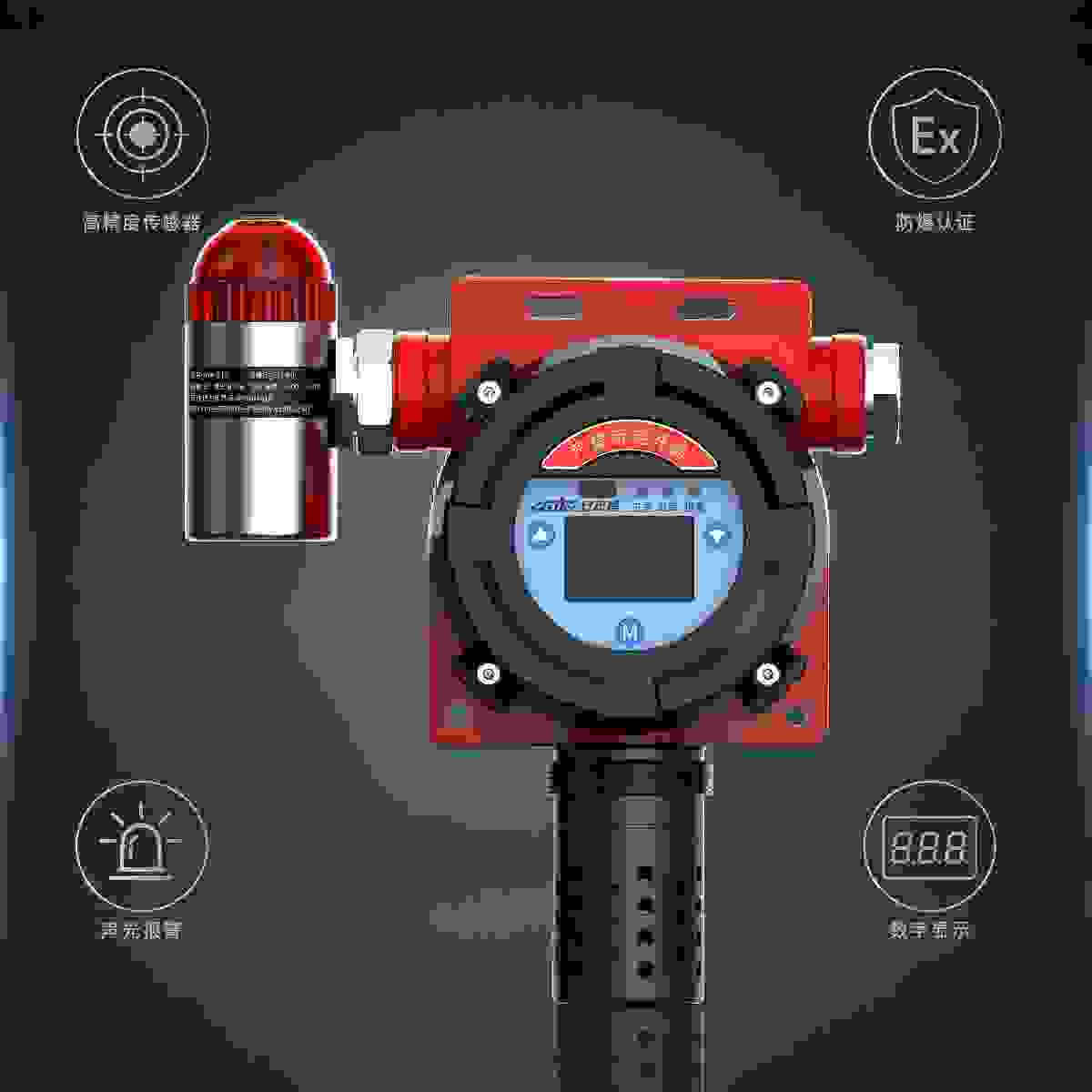

GT-AEC2232bX-L Laser Methane Gas Detector
TDLAS laser methane detection - long life, no calibration, fast response
Technical Parameters
| Detection Gas | Methane (CH4) |
|---|---|
| Sampling | Diffusion type |
| Working Voltage | DC24V ± 6V |
| Power Consumption | ≤3W (DC24V) |
| Electrical Interface | NPT 3/4" female thread |
| Explosion Protection | Ex db ib IIC T6 Gb / Ex ib tb IIIC T85°C |
| Protection Grade | IP66 |
| Housing | Cast aluminum or stainless steel |
| Dimensions | 215mm × 147mm × 77mm |
| Weight | Approx. 1.5kg (aluminum) / 4.5kg (stainless steel) |
Key Features
- TDLAS laser sensor - long life, strong anti-interference, fast response
- No calibration and no maintenance required
- High-concentration over-limit auto power-off protects sensor life

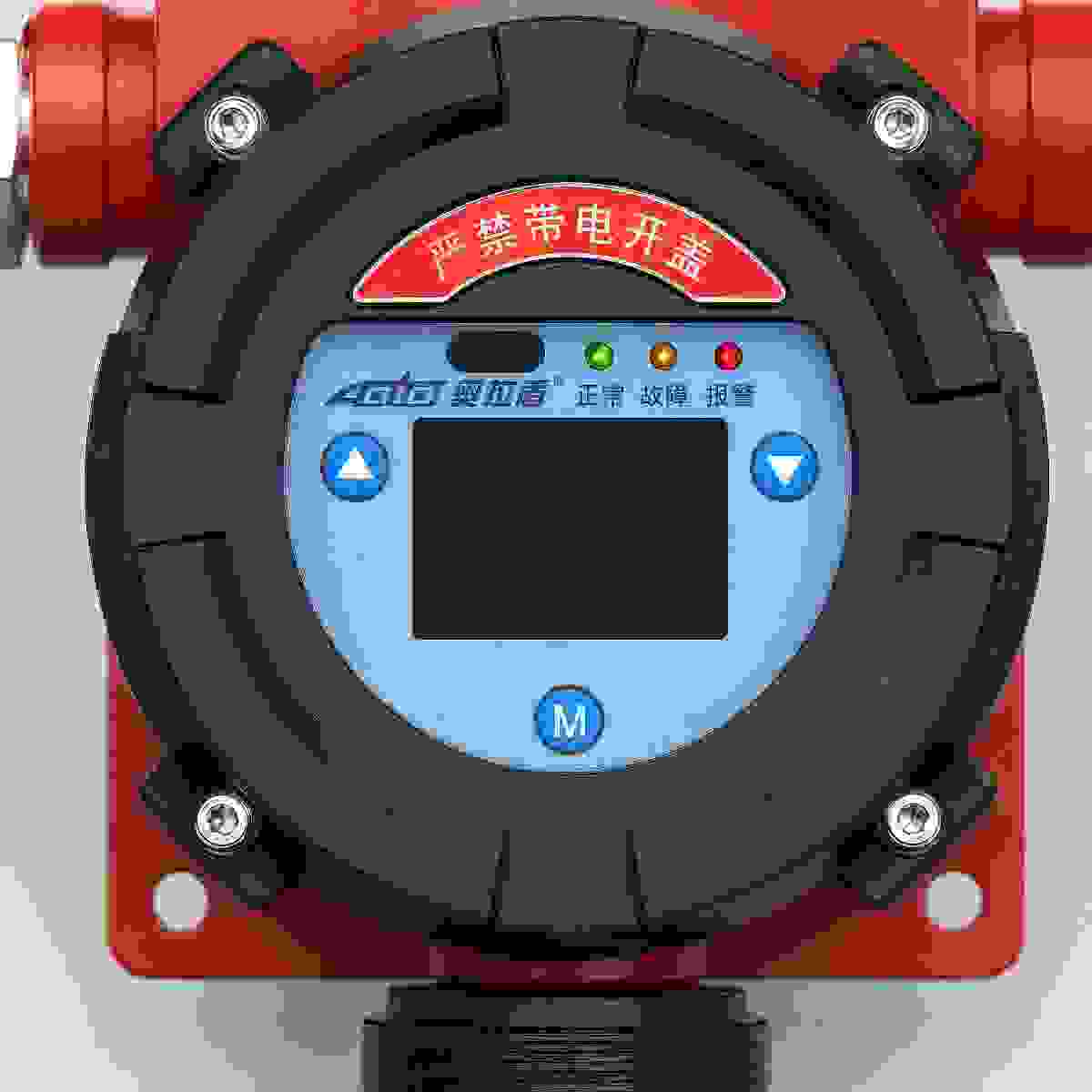

- LCD real-time gas concentration display
- Integrated modular design with sensor & processor modules
- Infrared remote zeroing and calibration
- Dust explosion-proof, fire protection & metering certifications
