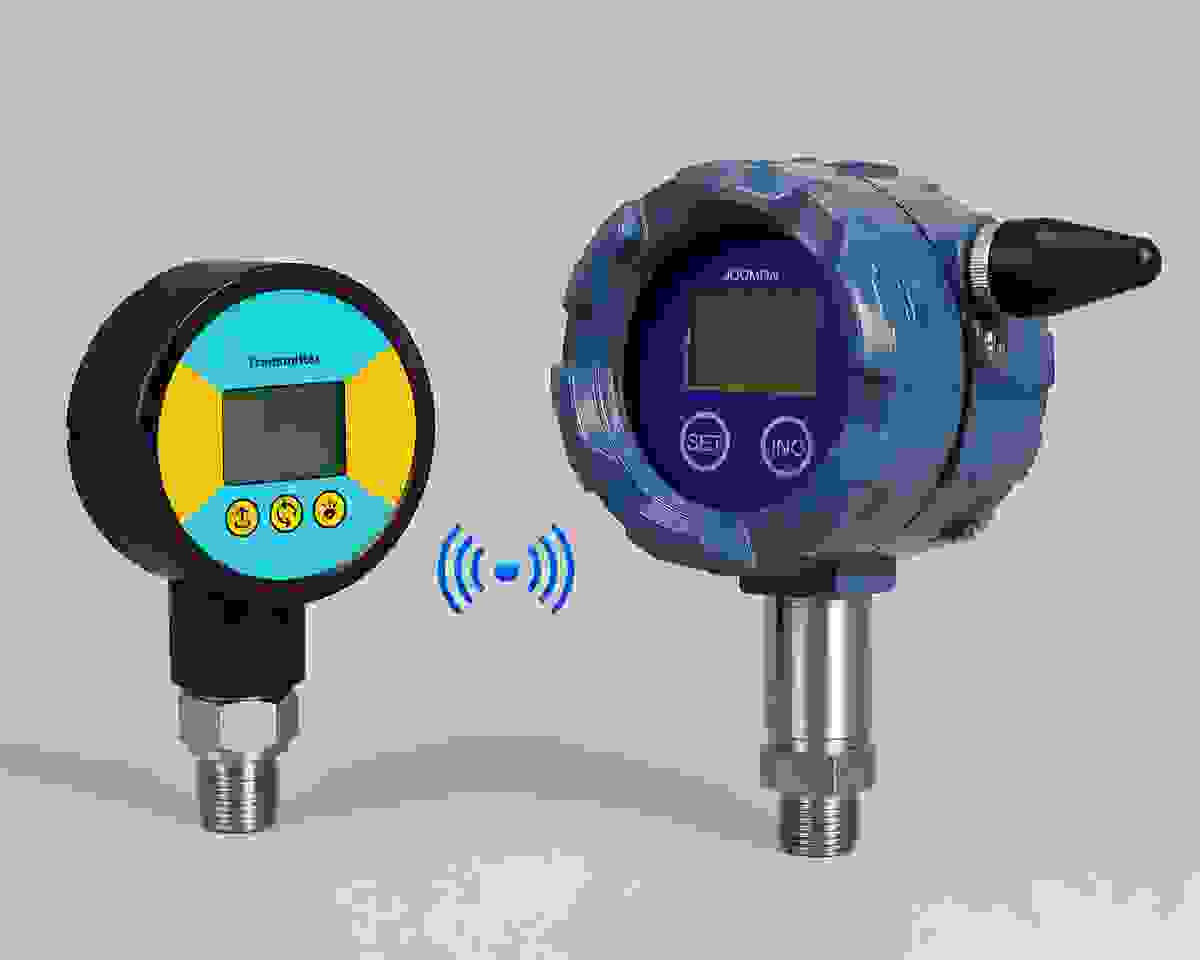

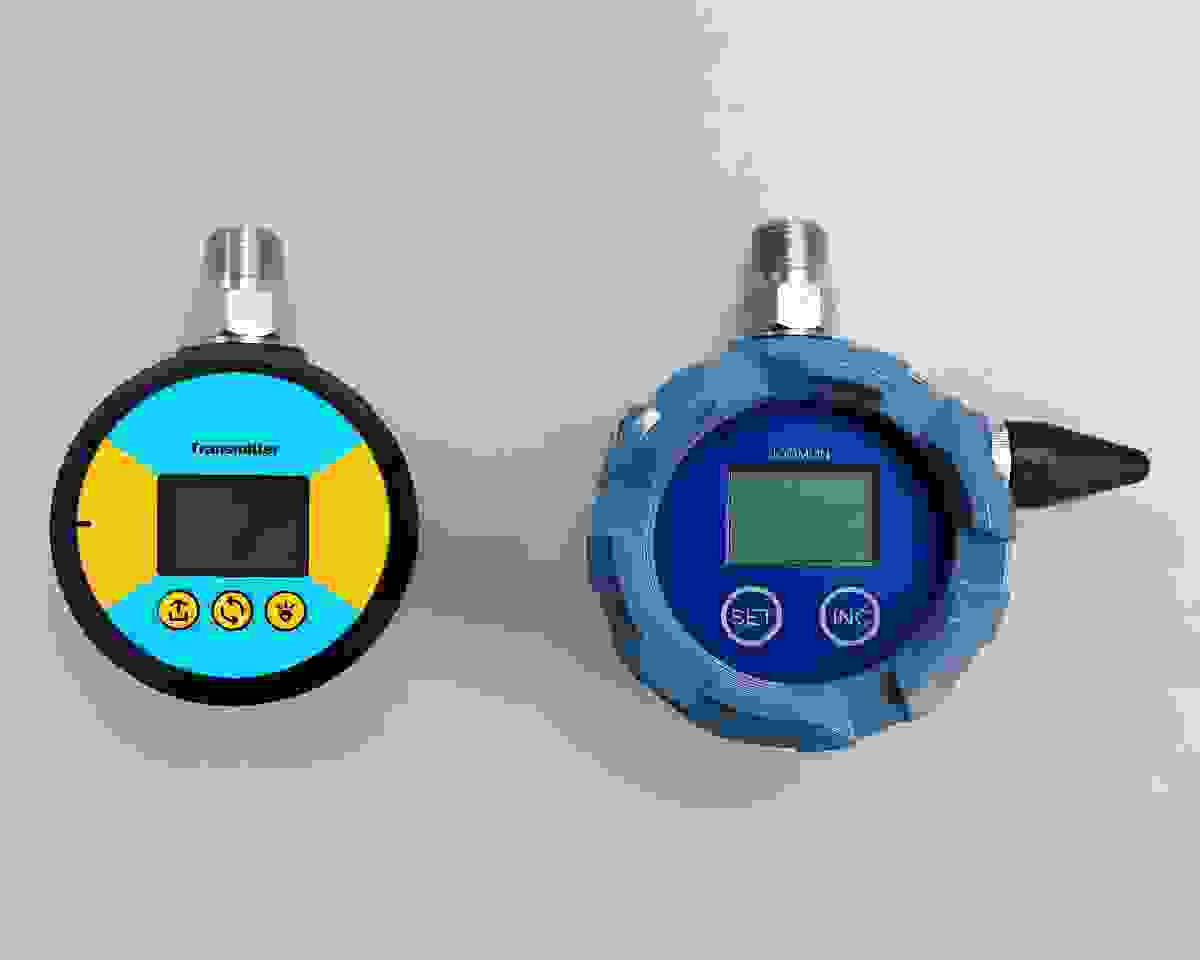

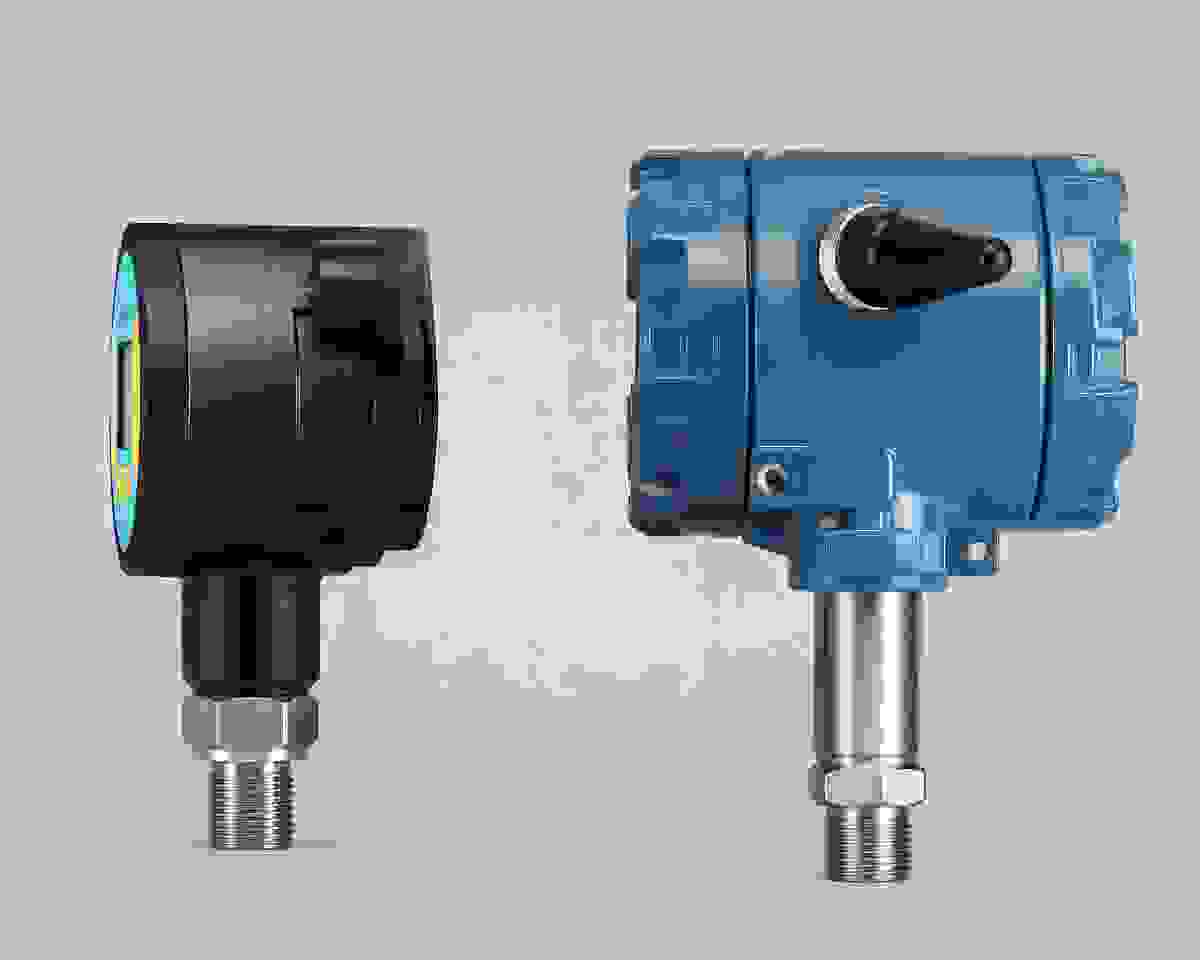

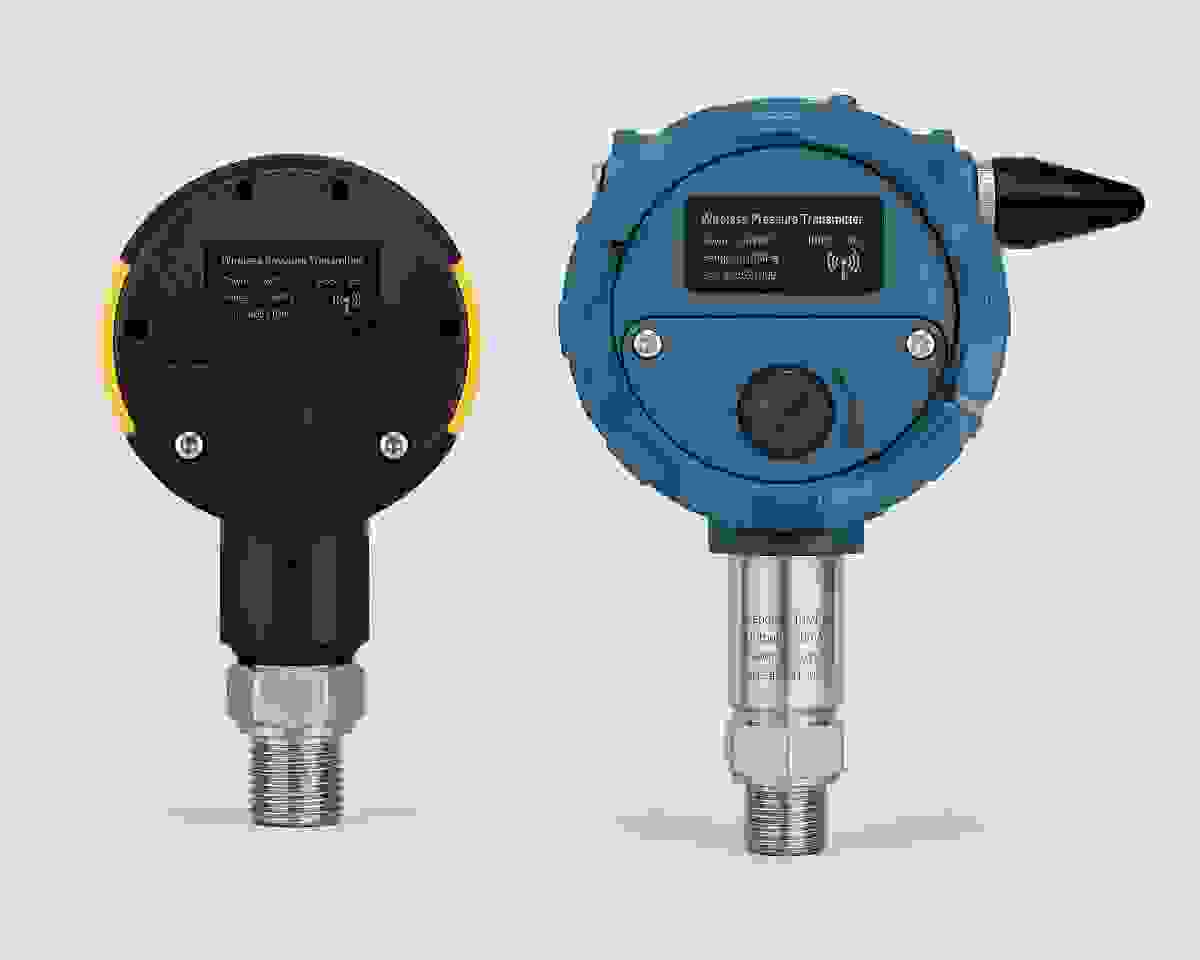

JMA-RPU Wireless Pressure Monitoring Terminal
True wireless pressure monitoring with 0.2% accuracy
Technical Parameters
| Accuracy | 0.2% standard (higher precision customizable) |
|---|---|
| Communication | 4G wireless; Bluetooth master-slave link |
| Power Supply | Solar / lithium battery / AC power |
| Mounting | Same installation as standard pressure gauge |
| Monitoring | Single or dual-point (inlet & outlet pressure) |
| Alarm | Immediate upload when data anomaly detected |
| Design | Intrinsically safe, all-aluminum housing |
| Integration | Compatible with SCADA cloud platforms & third-party systems |
Key Features
- Installs like a normal pressure gauge - battery version needs no field wiring
- Intrinsically safe explosion-proof design with all-aluminum housing
- Dual-point version monitors inlet & outlet pressure via wireless Bluetooth link
- 0.2% standard accuracy, higher precision available on request
- Remote adjustment of collection/upload frequency and remote fault diagnosis
- Immediate data upload on anomaly detection
