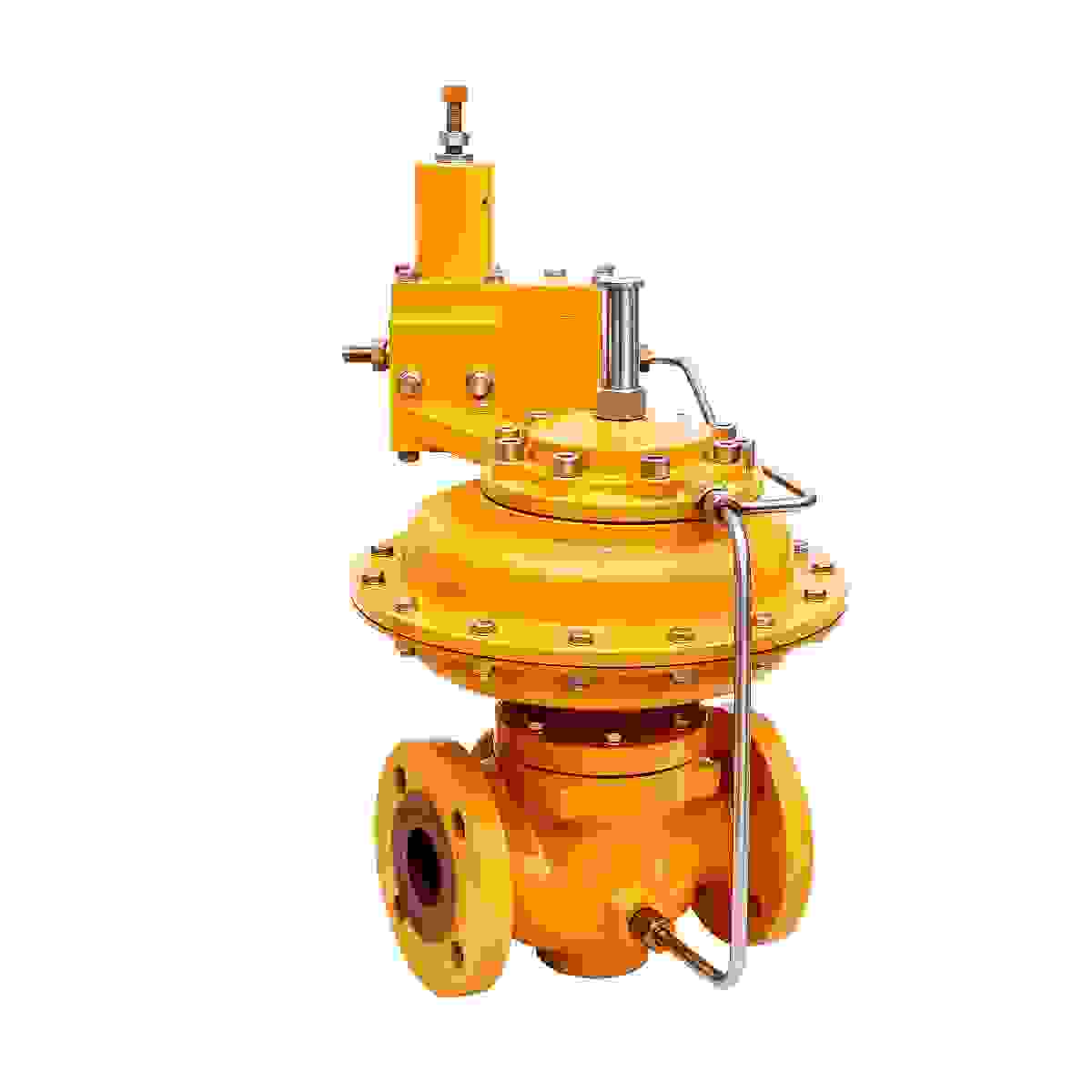

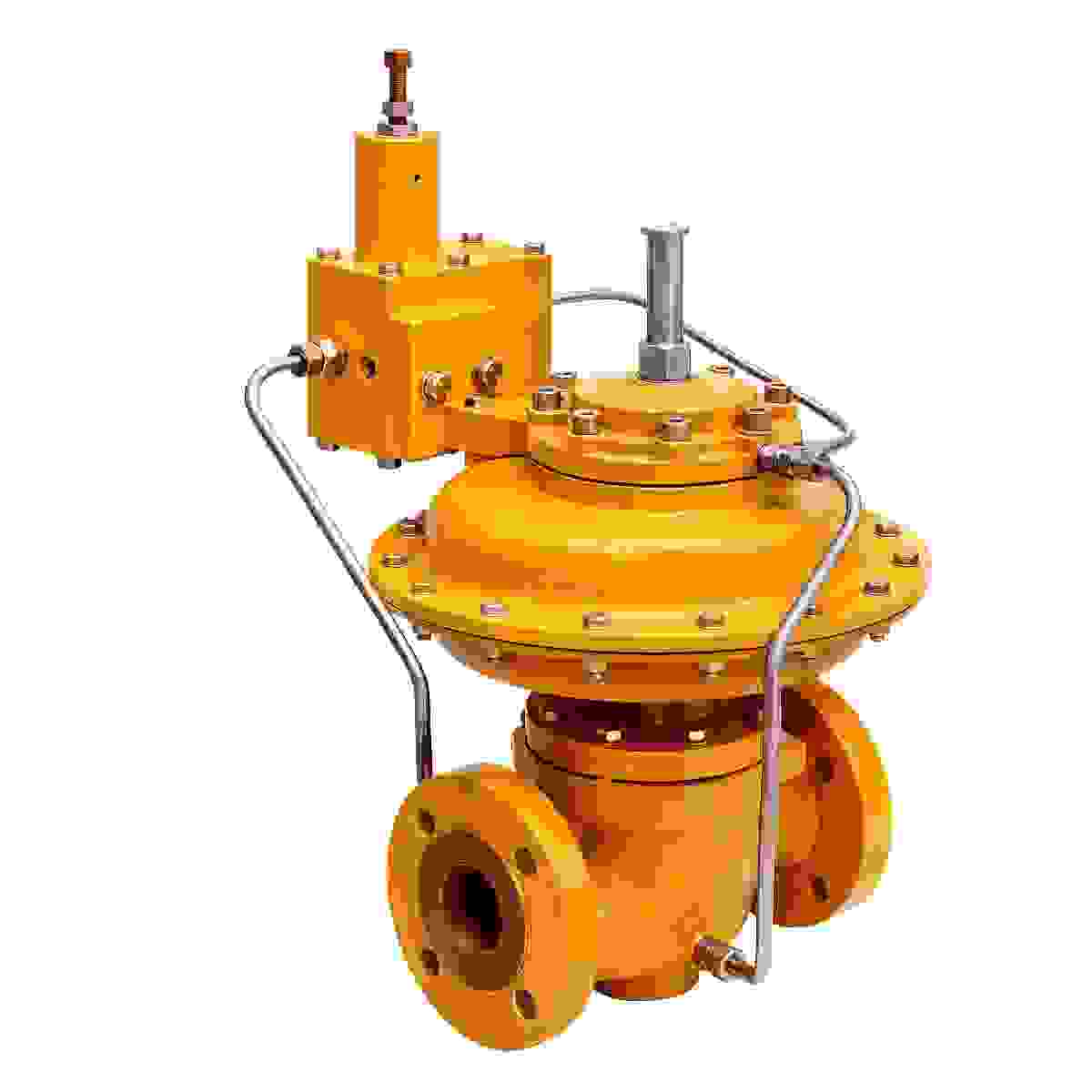

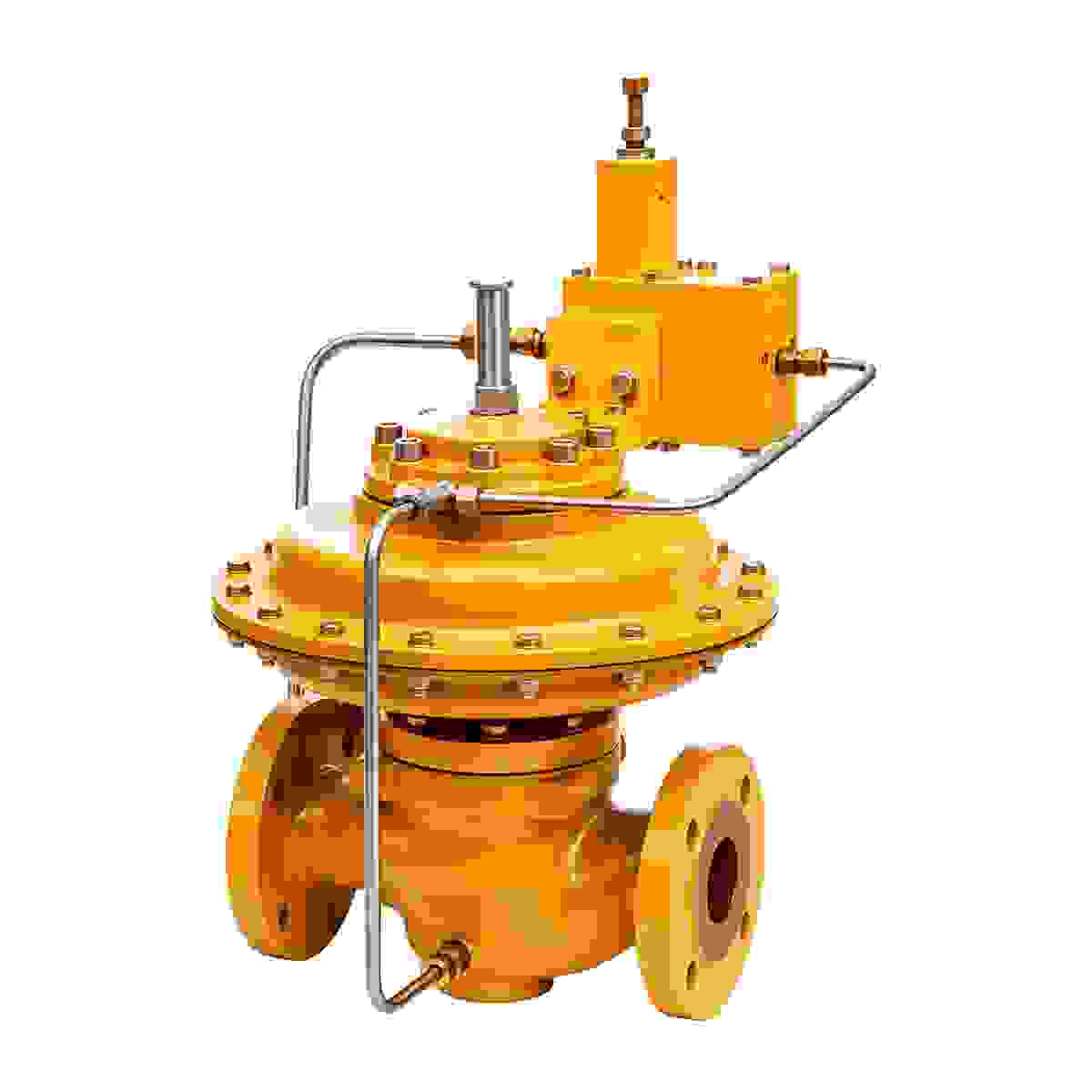

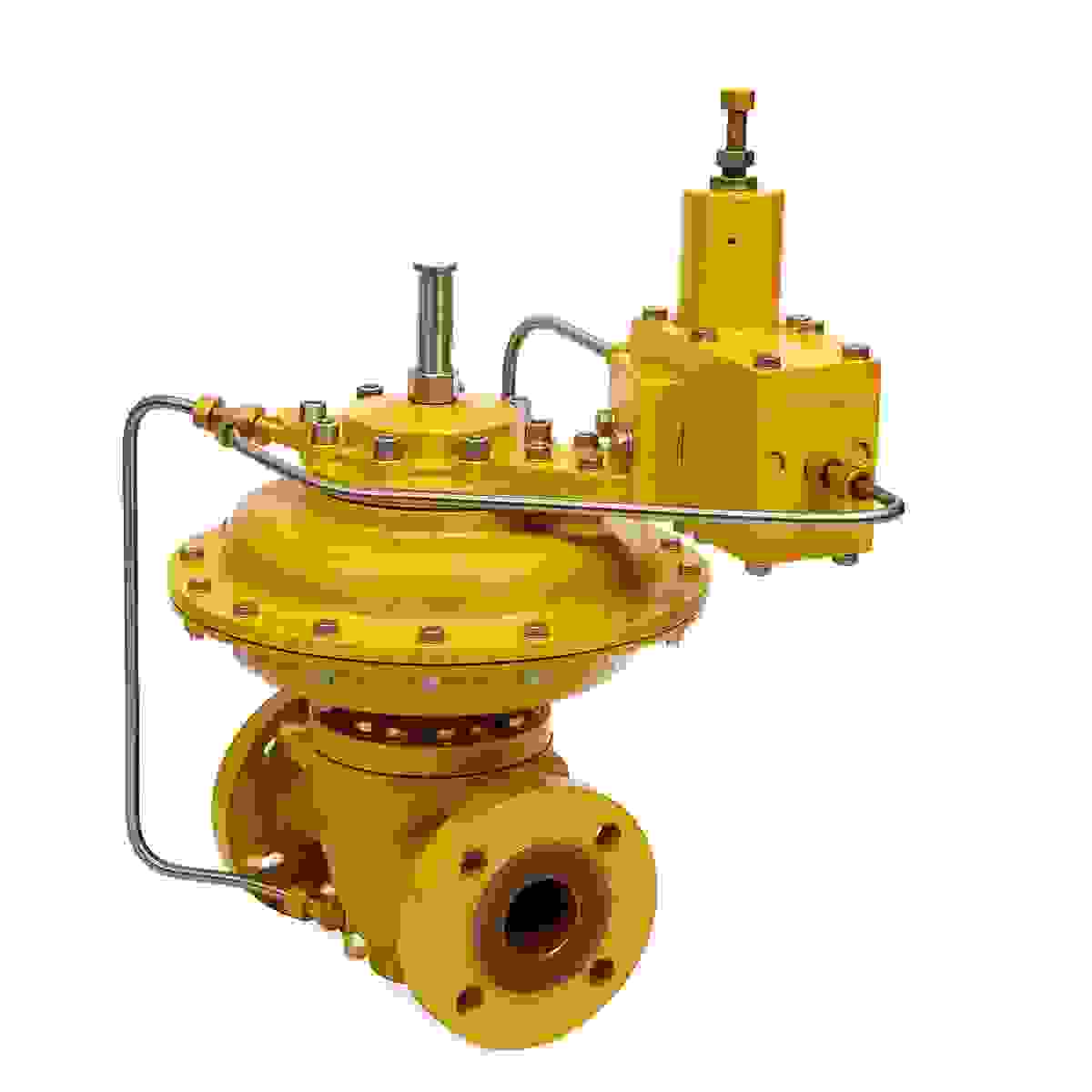

H Series High-Pressure Regulators
Dual-pilot-controlled high-pressure regulators up to 4.0 MPa
Technical Parameters
| Max. Inlet Pressure P1 | 4.0 MPa |
|---|---|
| Inlet Pressure Range | 0.1 - 4.0 MPa |
| Outlet Pressure Range P2 | 0.06 - 2.5 MPa |
| Regulating Accuracy | ≤ ±1% |
| Lock-up Pressure Pb | ≤ +5% |
| Working Temperature | -20°C ~ 60°C |
| Valve Body Size | DN50 - DN200 |
| Connection | Flanged, PN1.6 / 2.5 / 4.0 MPa |
Key Features
- Dual-pilot-controlled design
- High regulating accuracy ±1%
- For high-high / high-medium pressure networks, gate stations, CNG stations & large industrial users
- Fail-closed for safety
