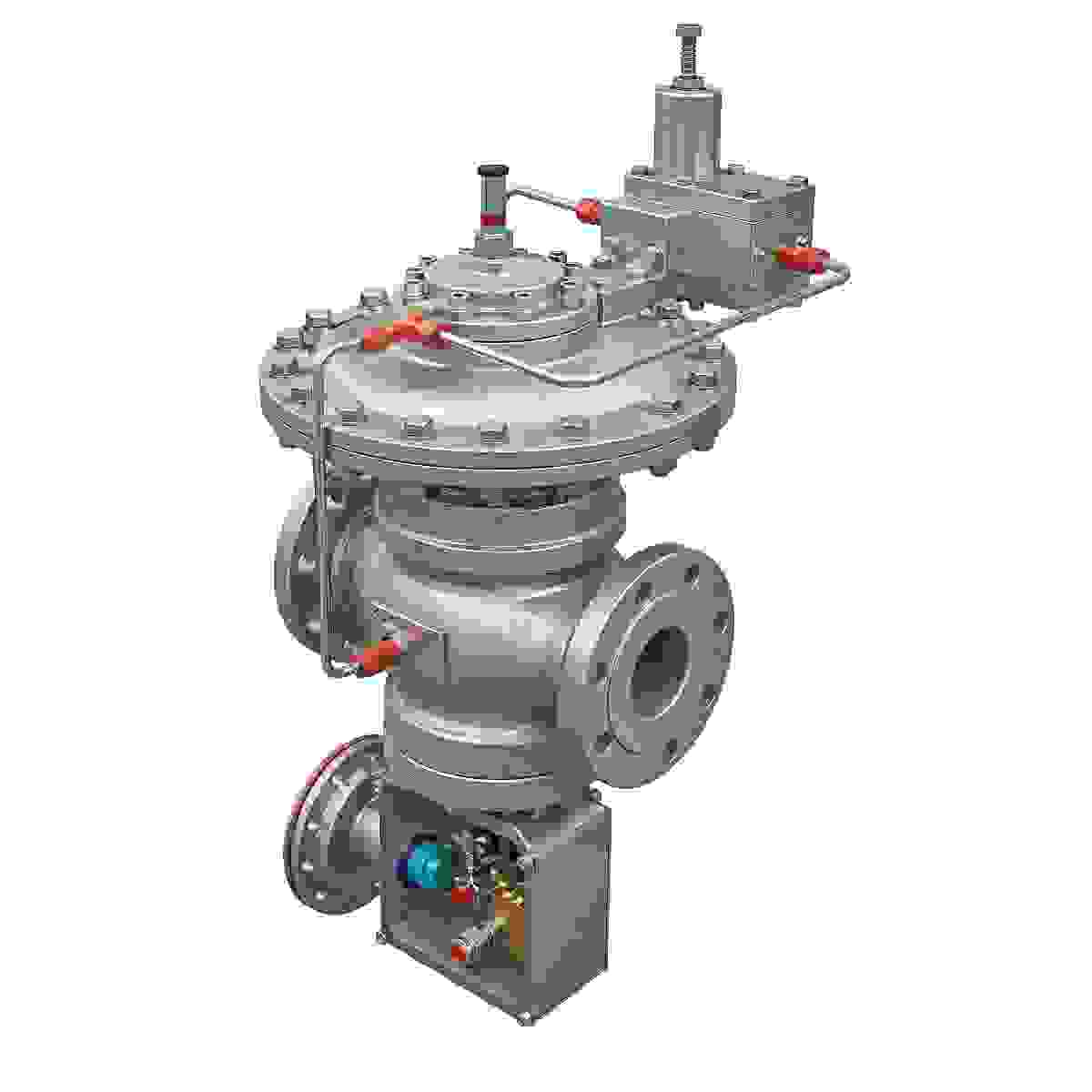

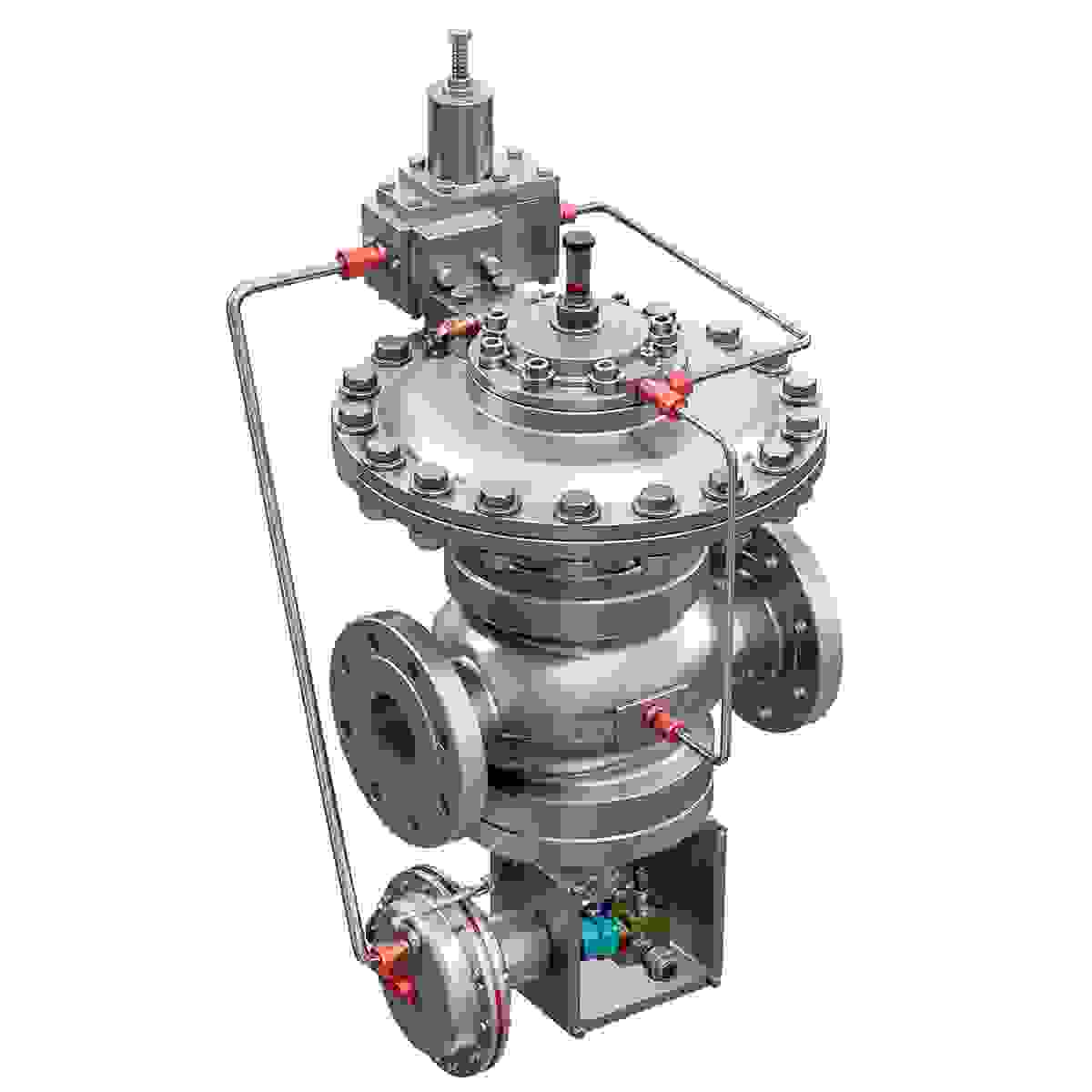

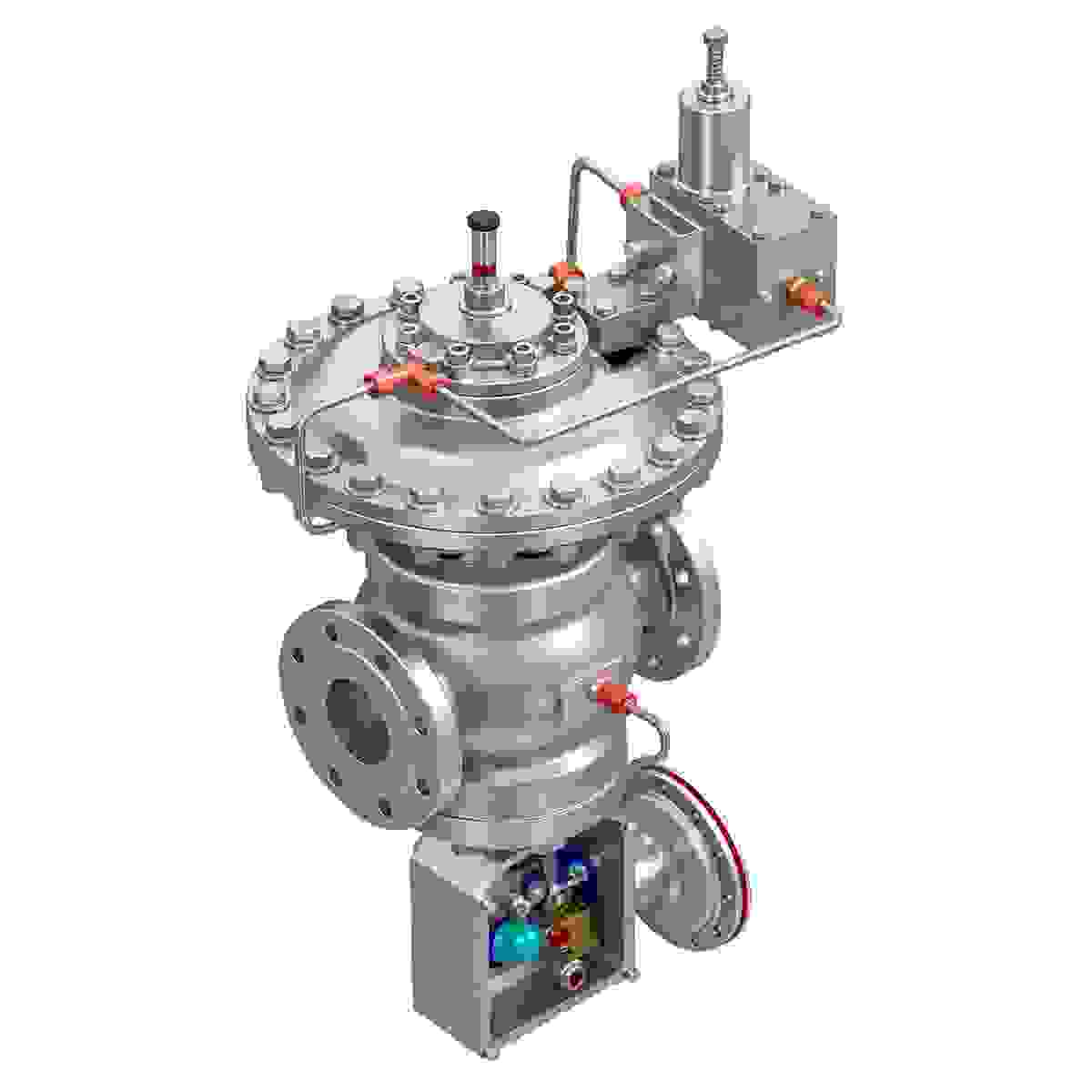

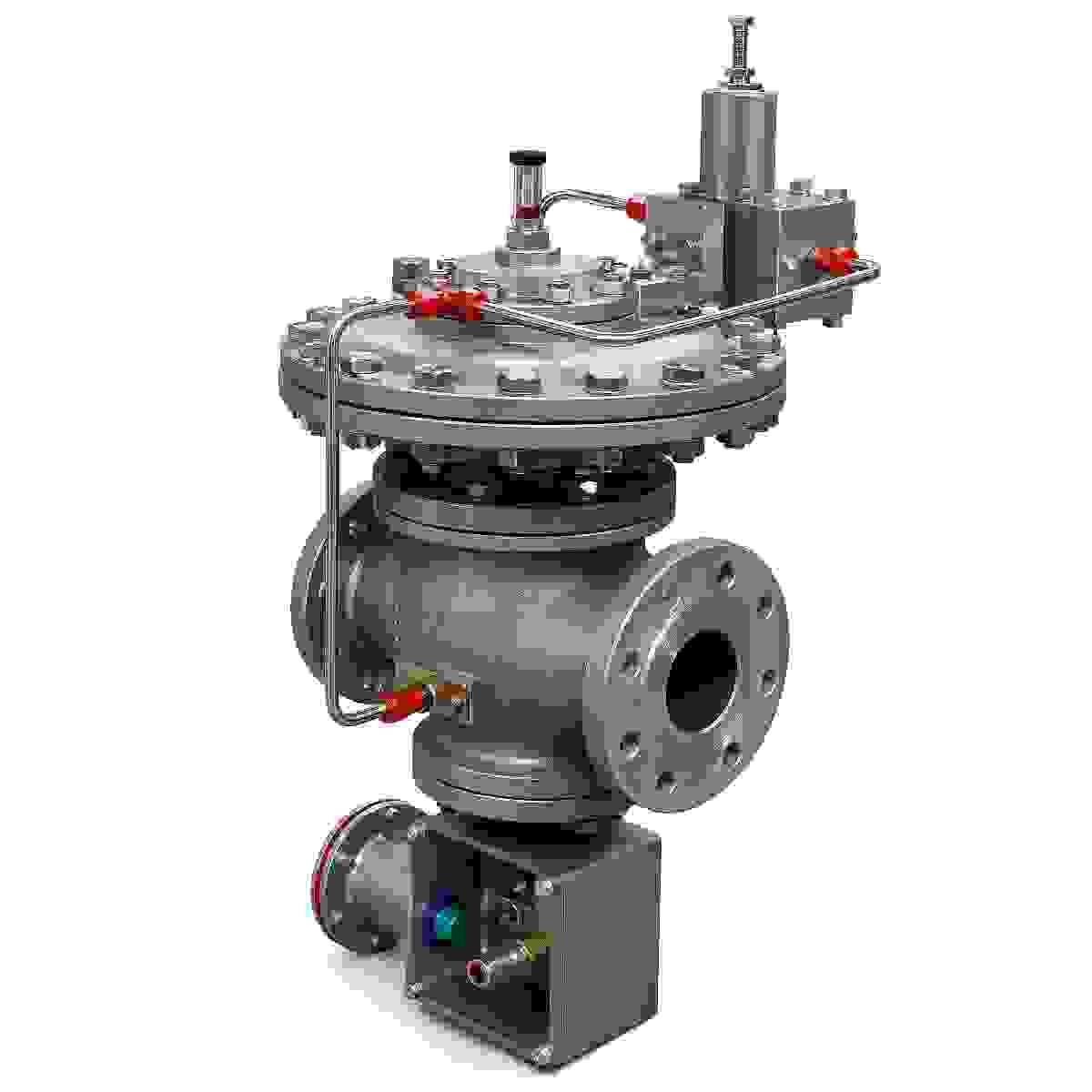

RTJ-HQ Series Regulators
High-integration regulators with one-piece over/under-pressure shut-off
Technical Parameters
| Inlet Pressure Range P1 | 0.1 - 4.0 MPa |
|---|---|
| Outlet Pressure Range P2 | 0.06 - 2.5 MPa |
| Regulating Accuracy | AC1 |
| Lock-up Pressure Class | SG2.5 |
| Shut-off | Over / under-pressure, ≤ 1 s response |
| Shut-off Setting Range | 0.0015 - 4.0 MPa |
| Connection | Flanged, PN1.6 / 2.5 / 4.0 MPa, DN50 - DN200 |
| Working Temperature | -20°C ~ 60°C |
| Optional | Explosion-proof remote signal (Ex d IIC T6), built-in silencer, valve position transmitter |
Key Features
- External full-balanced structure
- Dual-pilot control, precise outlet pressure
- One-piece over/under-pressure shut-off
- On-line maintenance of all components
- Large flow capacity
