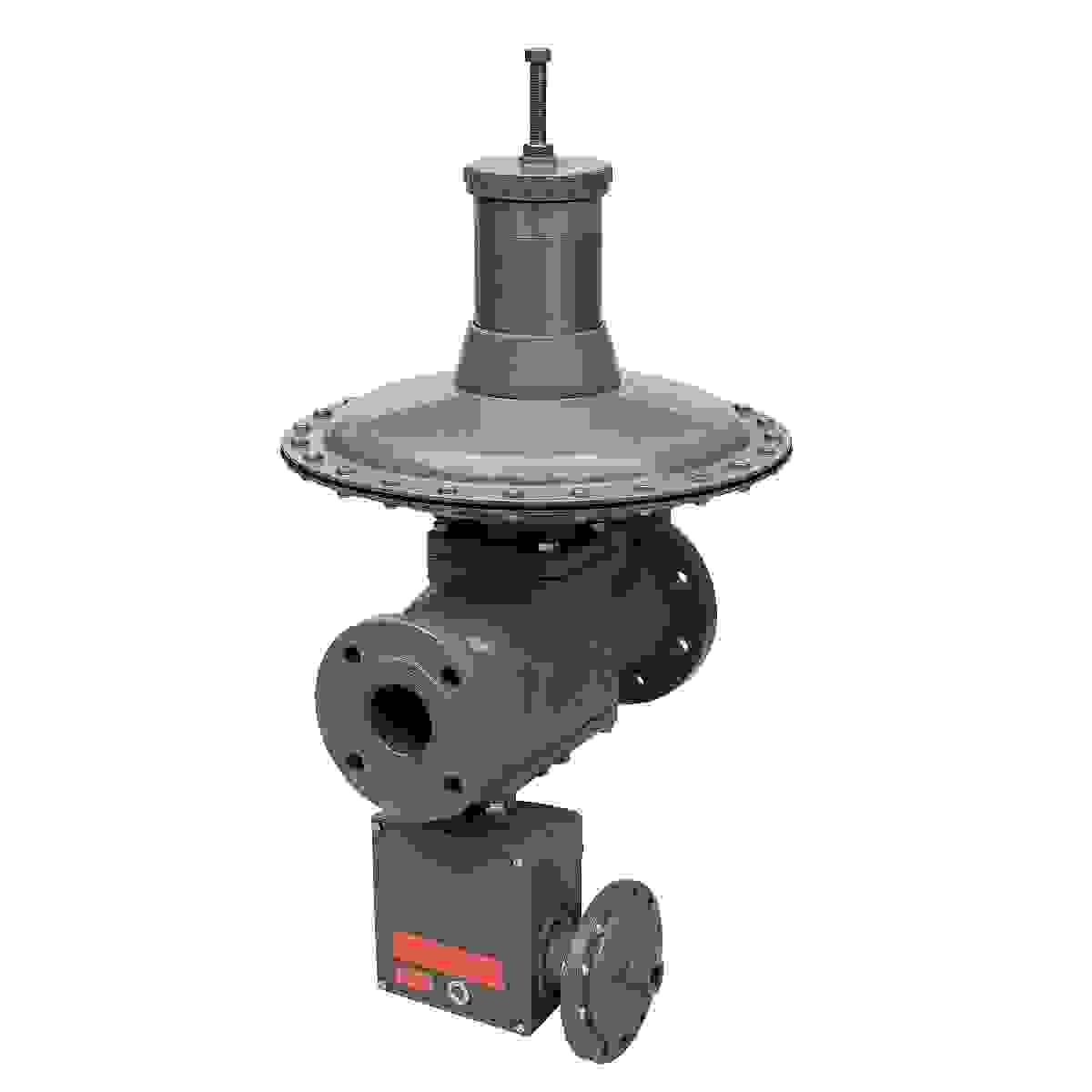

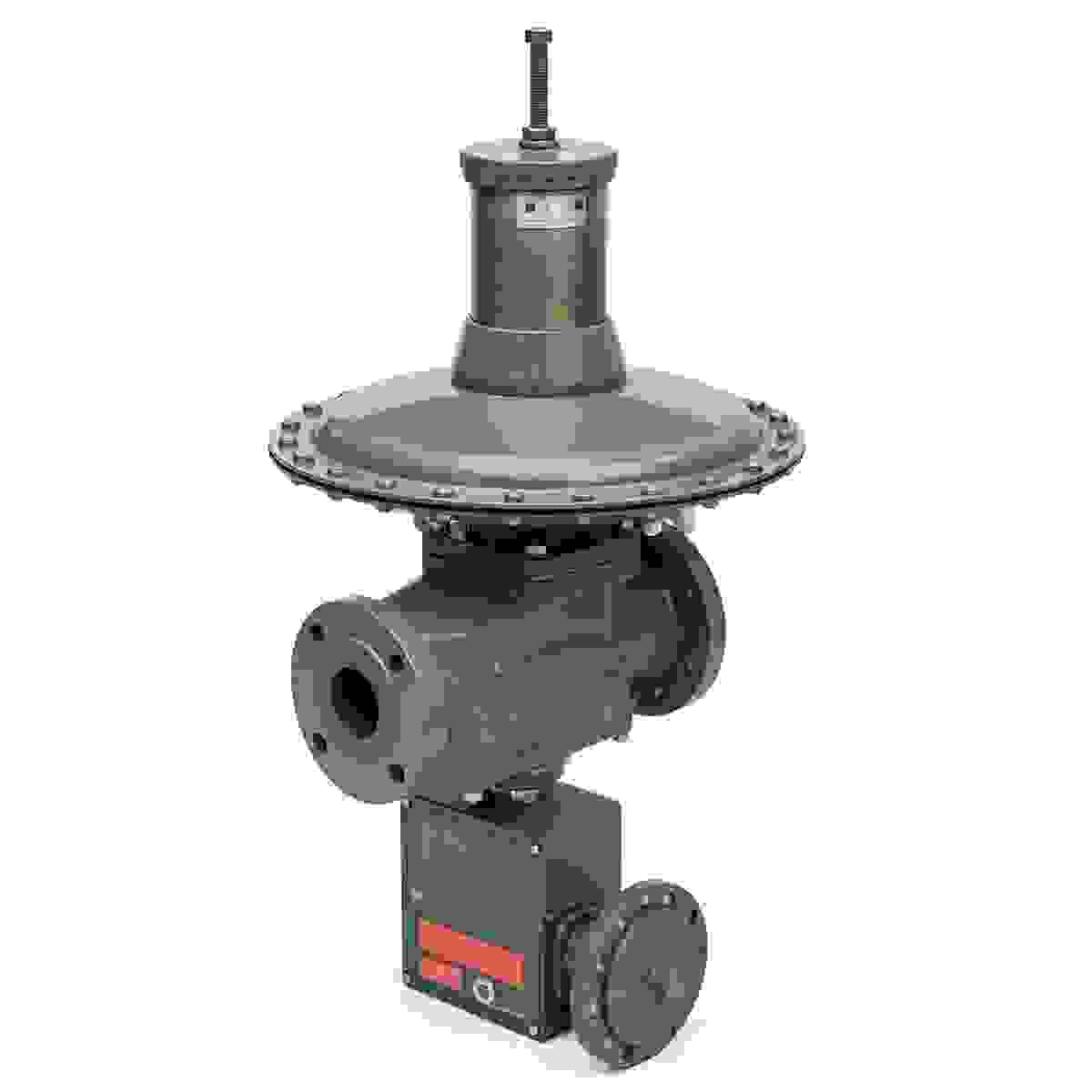

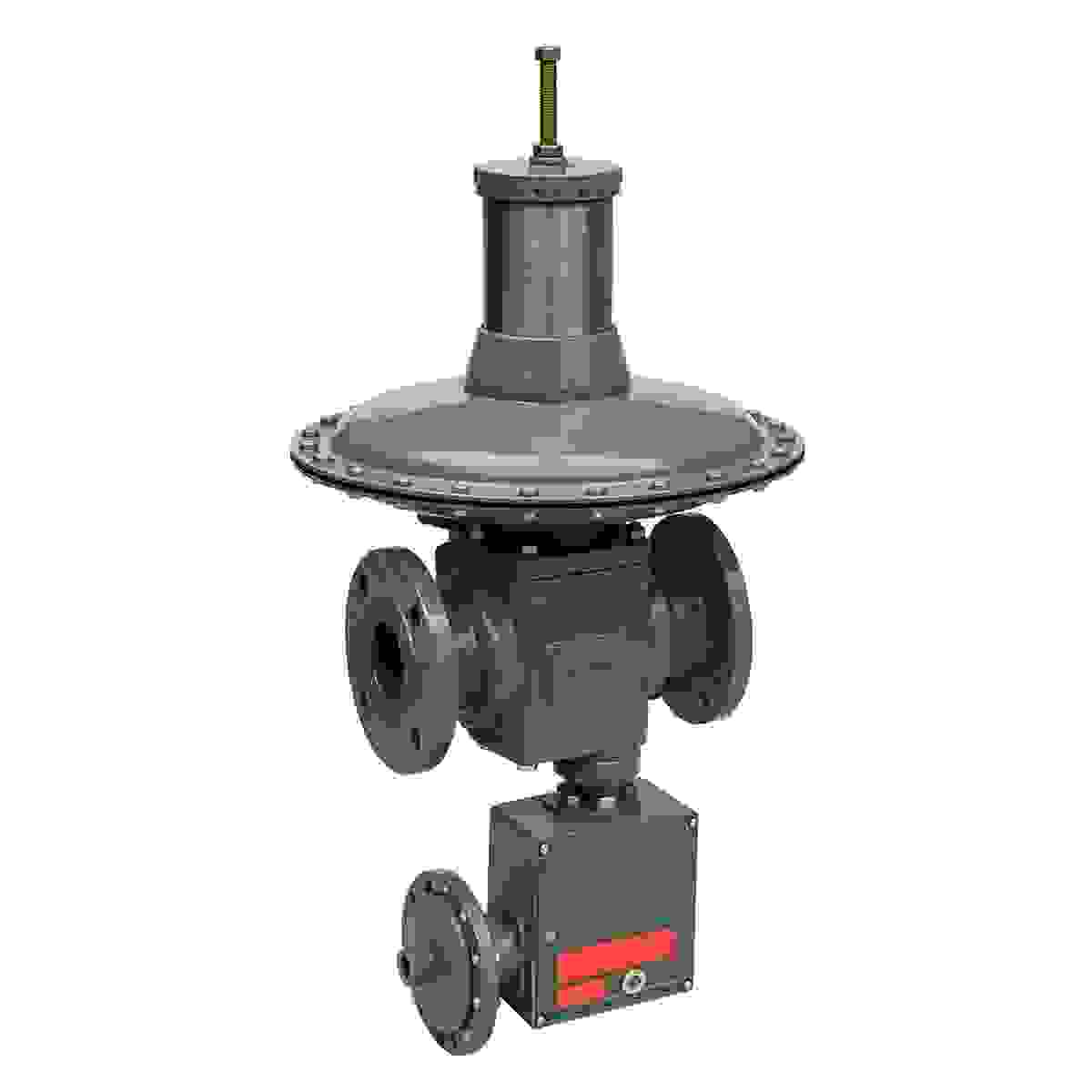

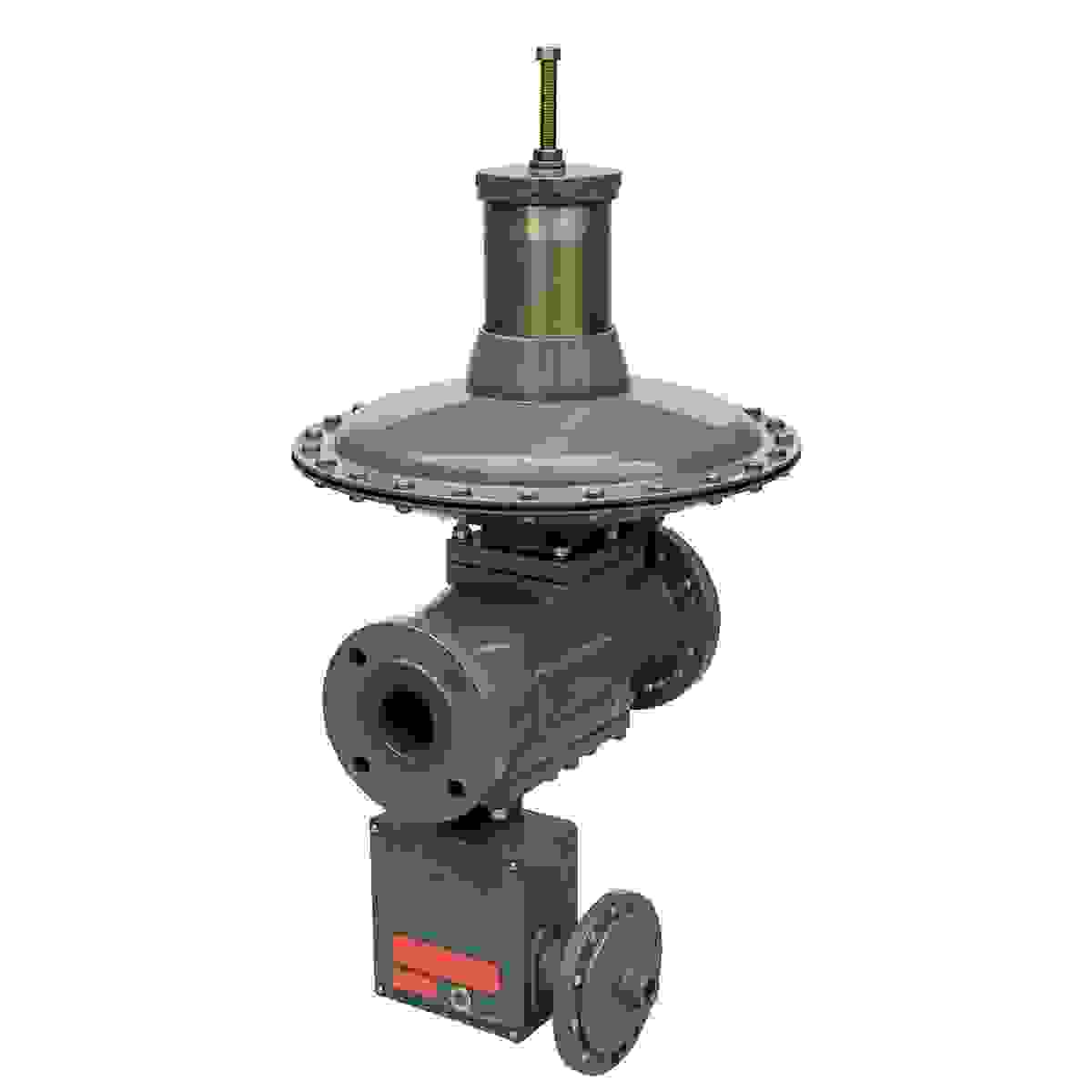

LQ Series Regulators
Heavy-duty medium-pressure regulators up to 8 bar inlet
Technical Parameters
| Permissible Pressure | 8 bar |
|---|---|
| Inlet Pressure Range | 0.2 - 8 bar |
| Outlet Pressure Range | 1.5 - 100 kPa |
| Connection | Flanged PN1.6 MPa (HG20592) |
| Size Range | DN50 - DN150 |
| Regulating Accuracy | AC5 |
| Lock-up Accuracy | SG10 |
| Shut-off Response Time | ≤ 1 s |
| Working Temperature | -20°C ~ 60°C |
Product Datasheet
LQ Series Regulators — full technical datasheet
PDF Open Datasheet 195 KB
Preview the full datasheet →
Key Features
- High regulating accuracy
- Fast shut-off response
- Robust heavy-duty construction
- Wide flow range
