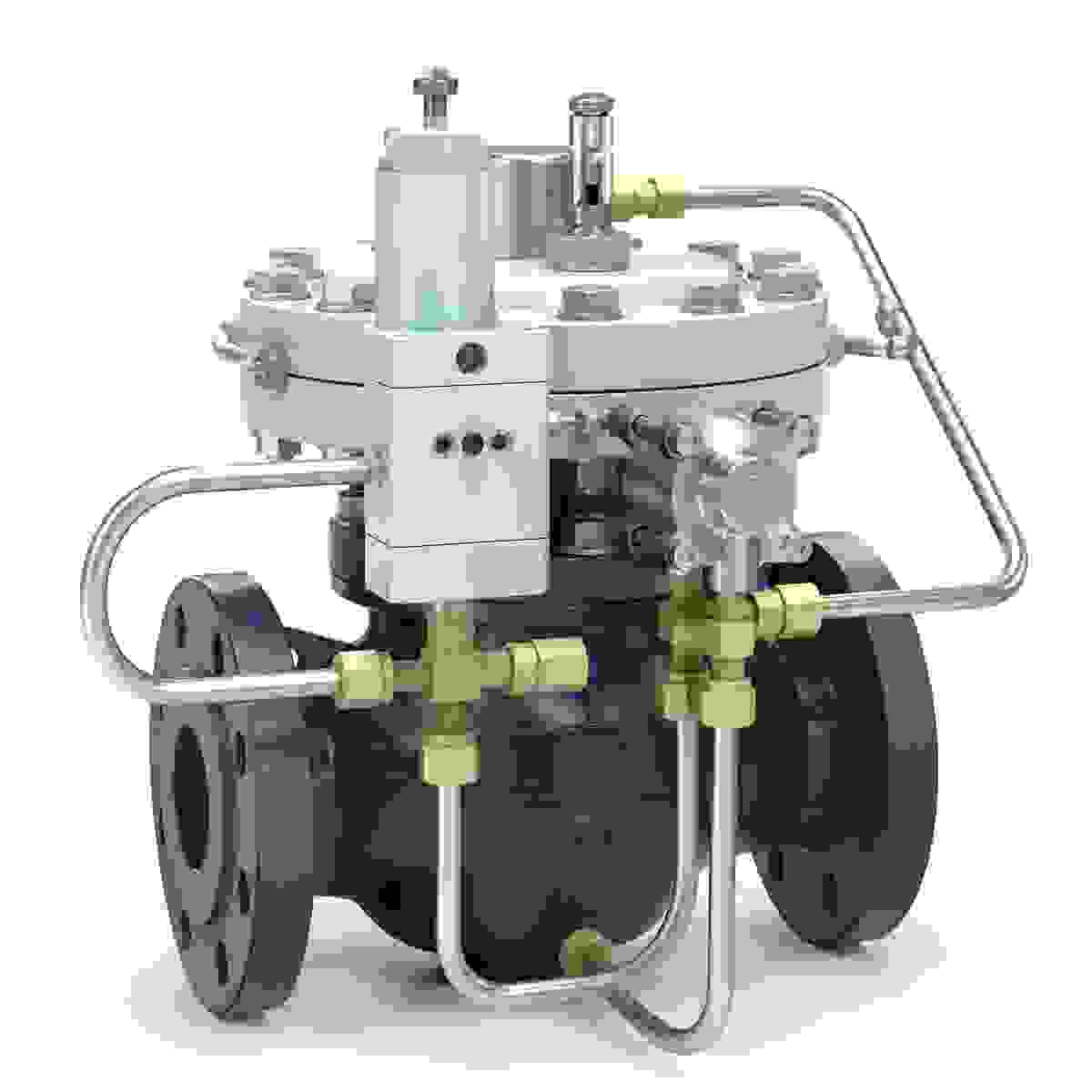

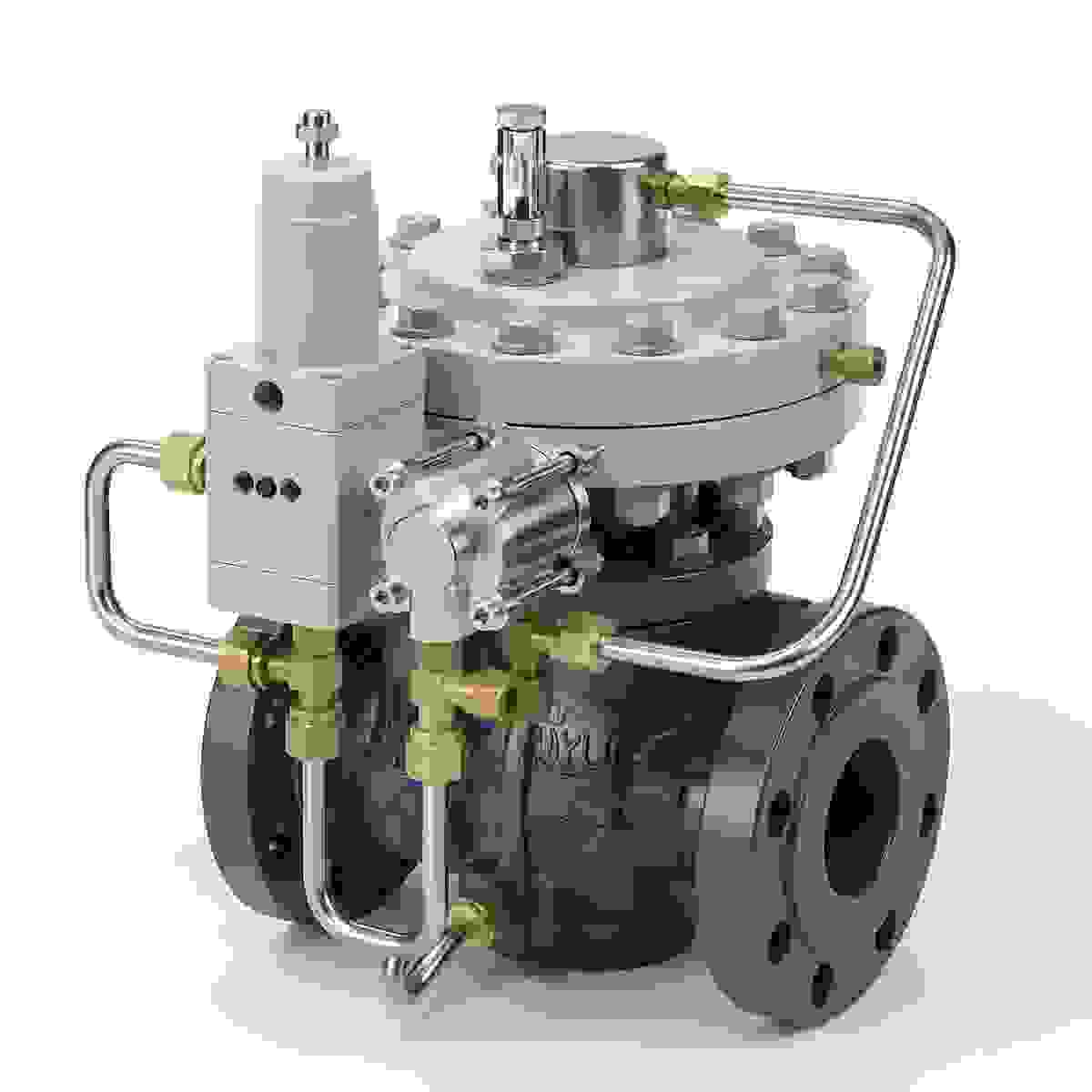

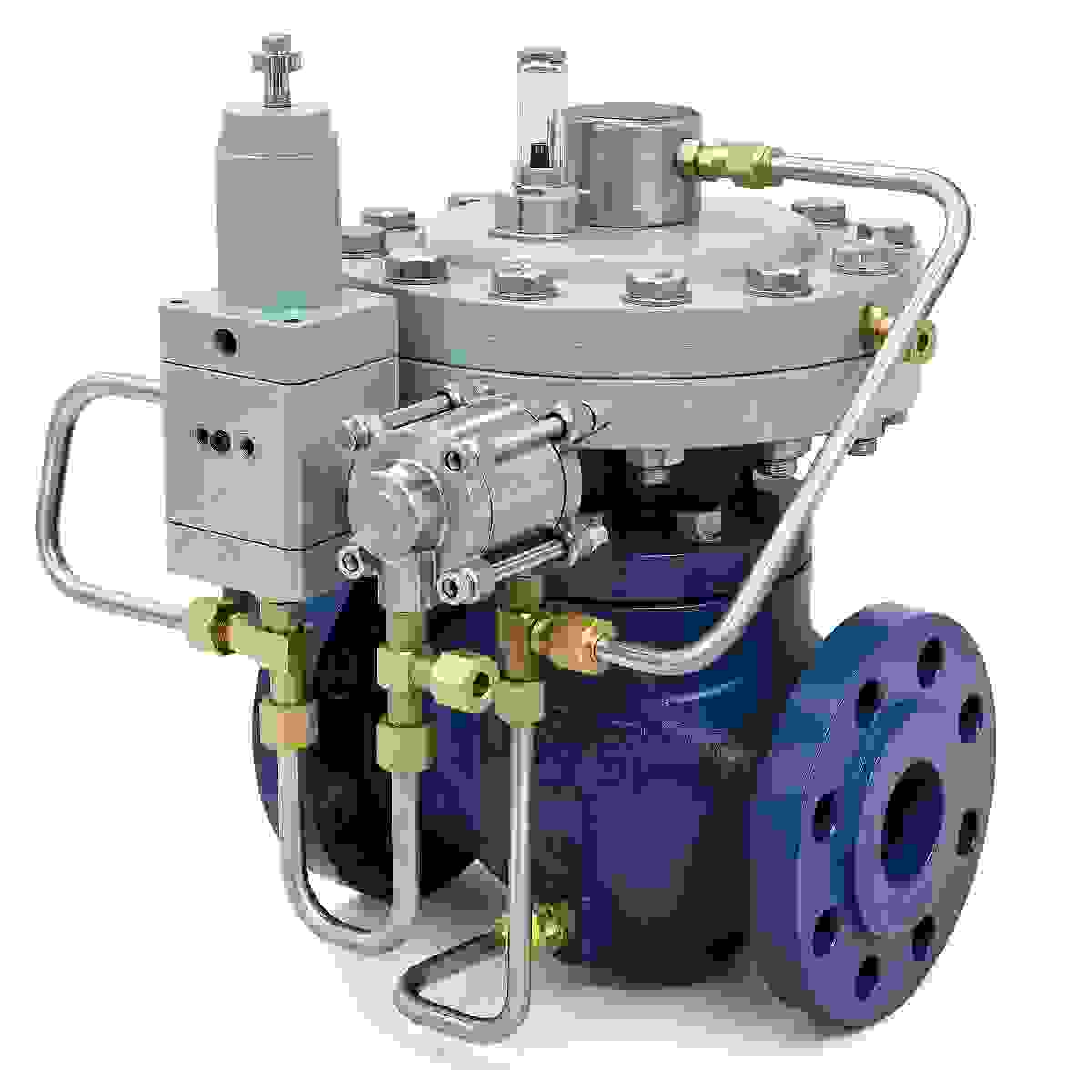

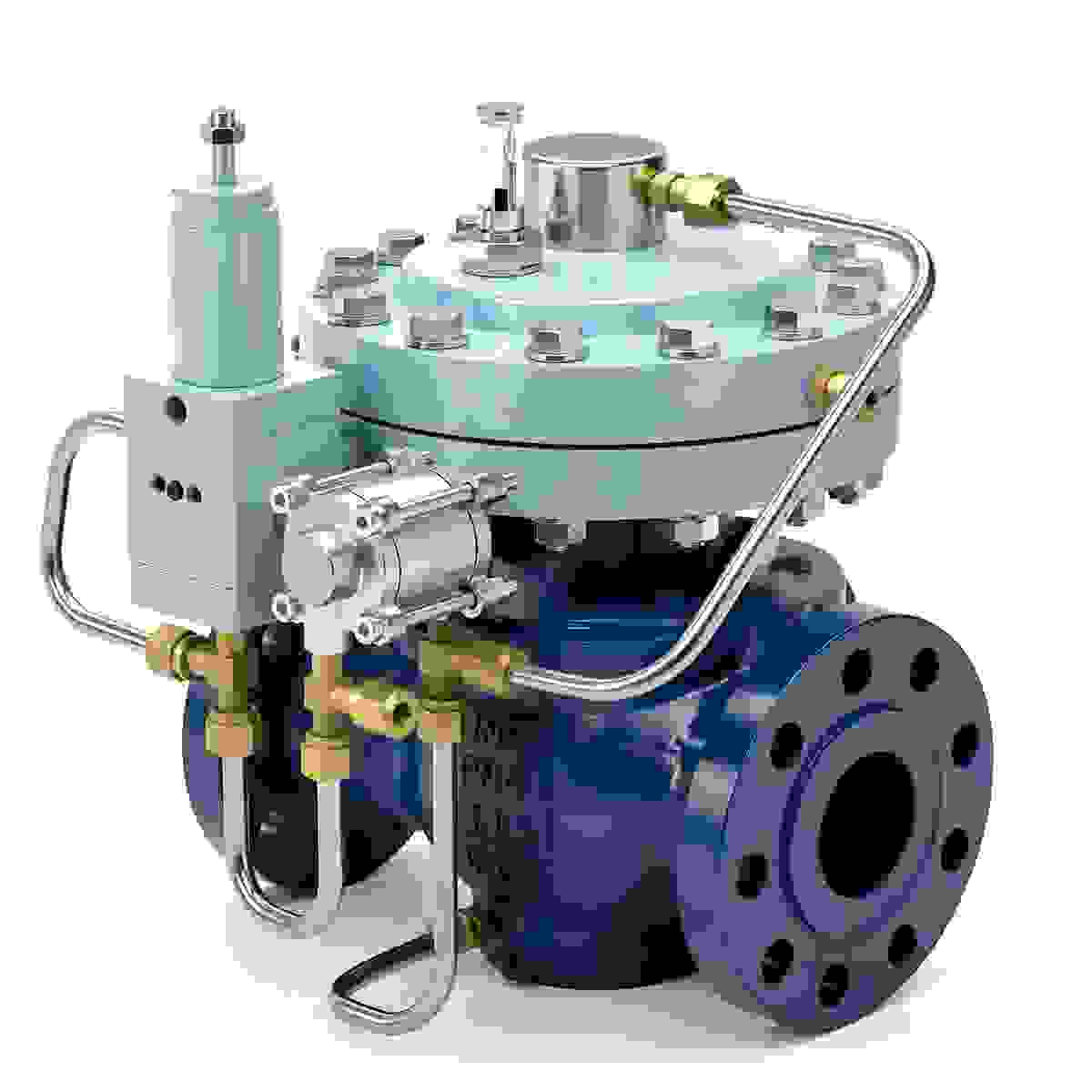

Regnex M Series Regulators
Pilot-operated regulators for high-pressure networks up to 100 bar
Technical Parameters
| Pressure Rating | Class300 (≤ 50 bar) / Class600 (≤ 100 bar) |
|---|---|
| Inlet Pressure Range | 1 - 50 bar / 1 - 100 bar |
| Outlet Pressure Range | 0.5 - 40 bar / 0.5 - 60 bar |
| Min. Differential Pressure | 0.5 bar |
| Nominal Diameter | DN25 - DN200 |
| Working Temperature | -20°C ~ 60°C |
| Pilot Options | HP110 / MP97 / MP97AP / DP121 / DP121AP |
Key Features
- Pilot-operated, high accuracy
- Wide pressure range up to 100 bar
- Optional built-in silencer (multi-path noise reduction)
- Available with monitor regulator for uninterrupted supply
- Position indicator as standard
