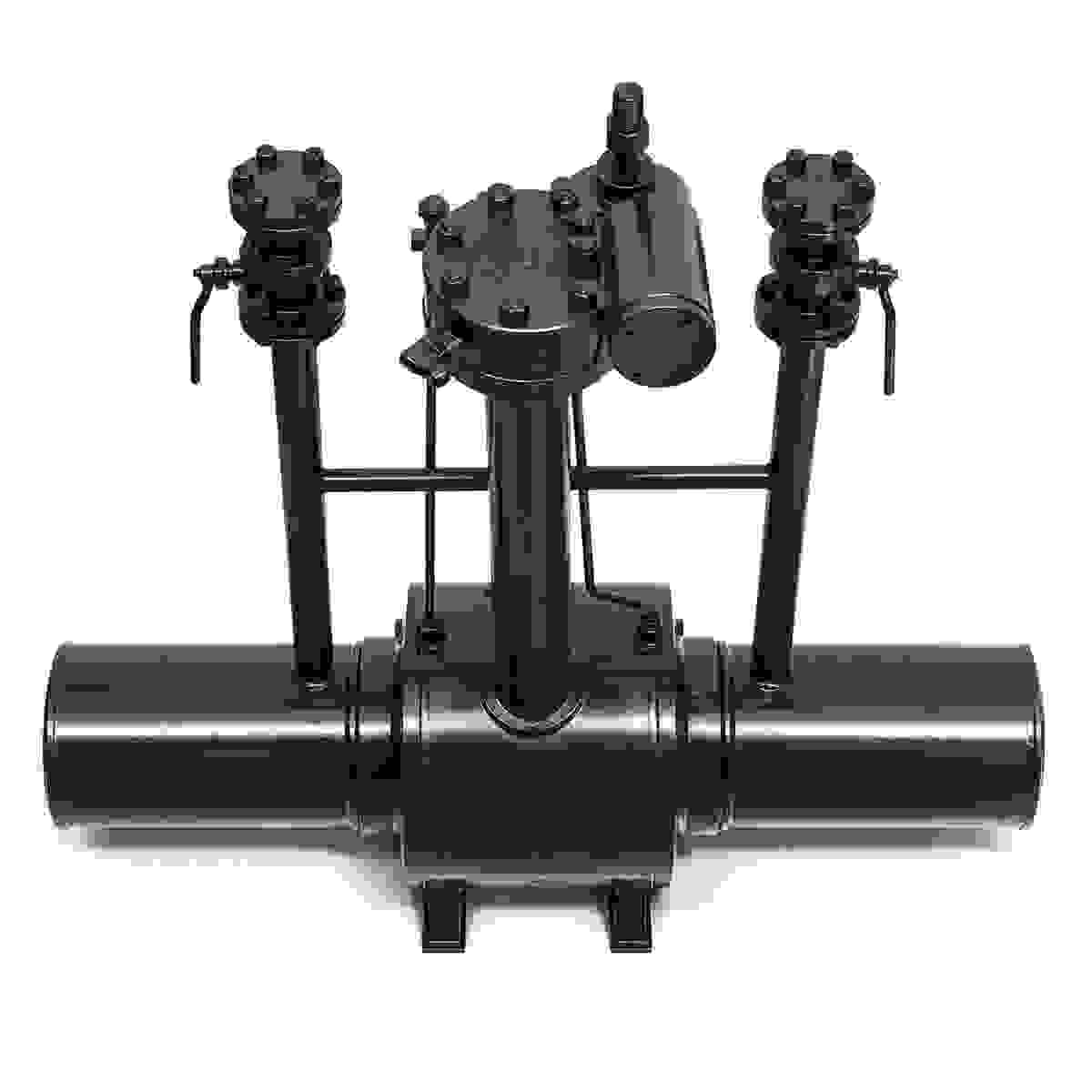

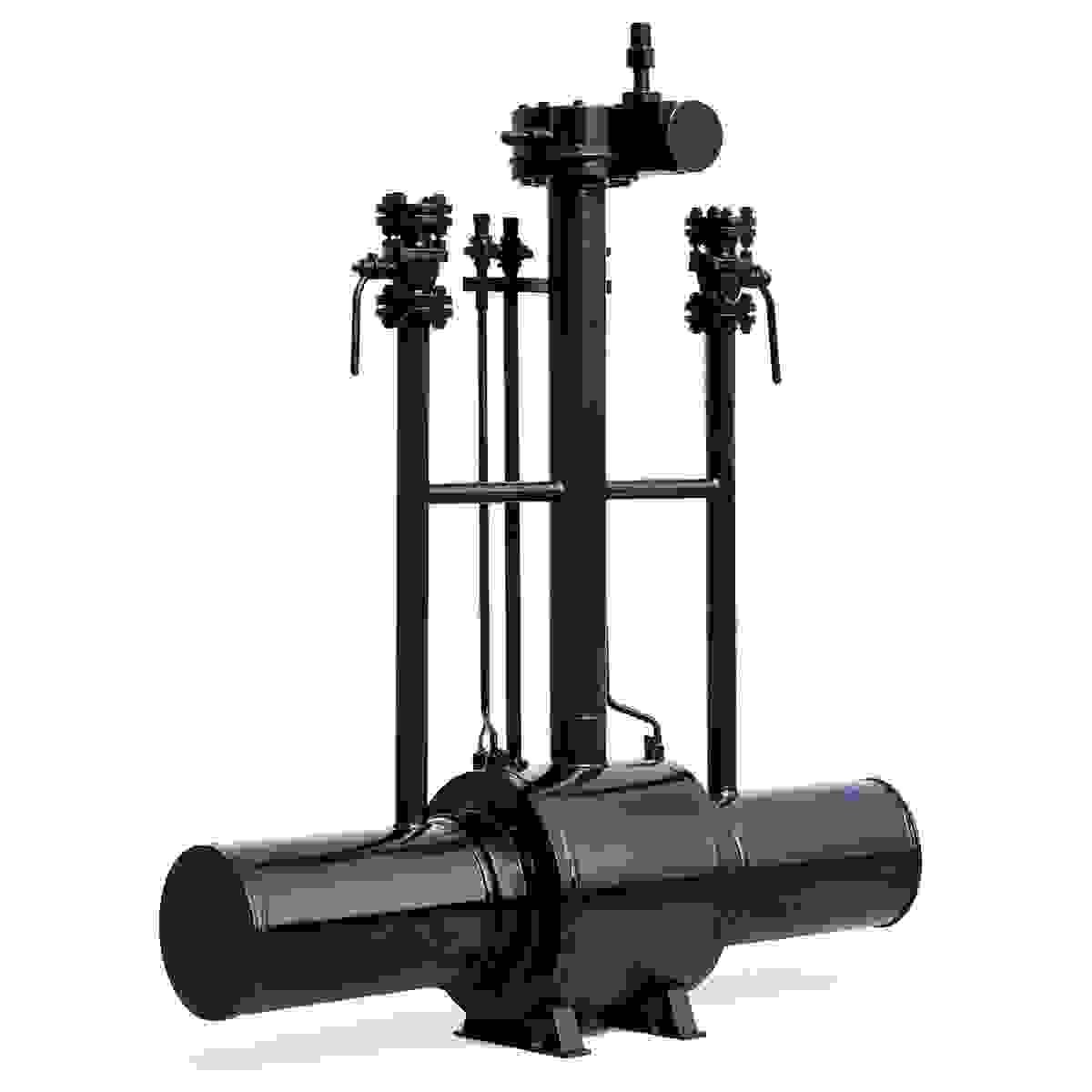

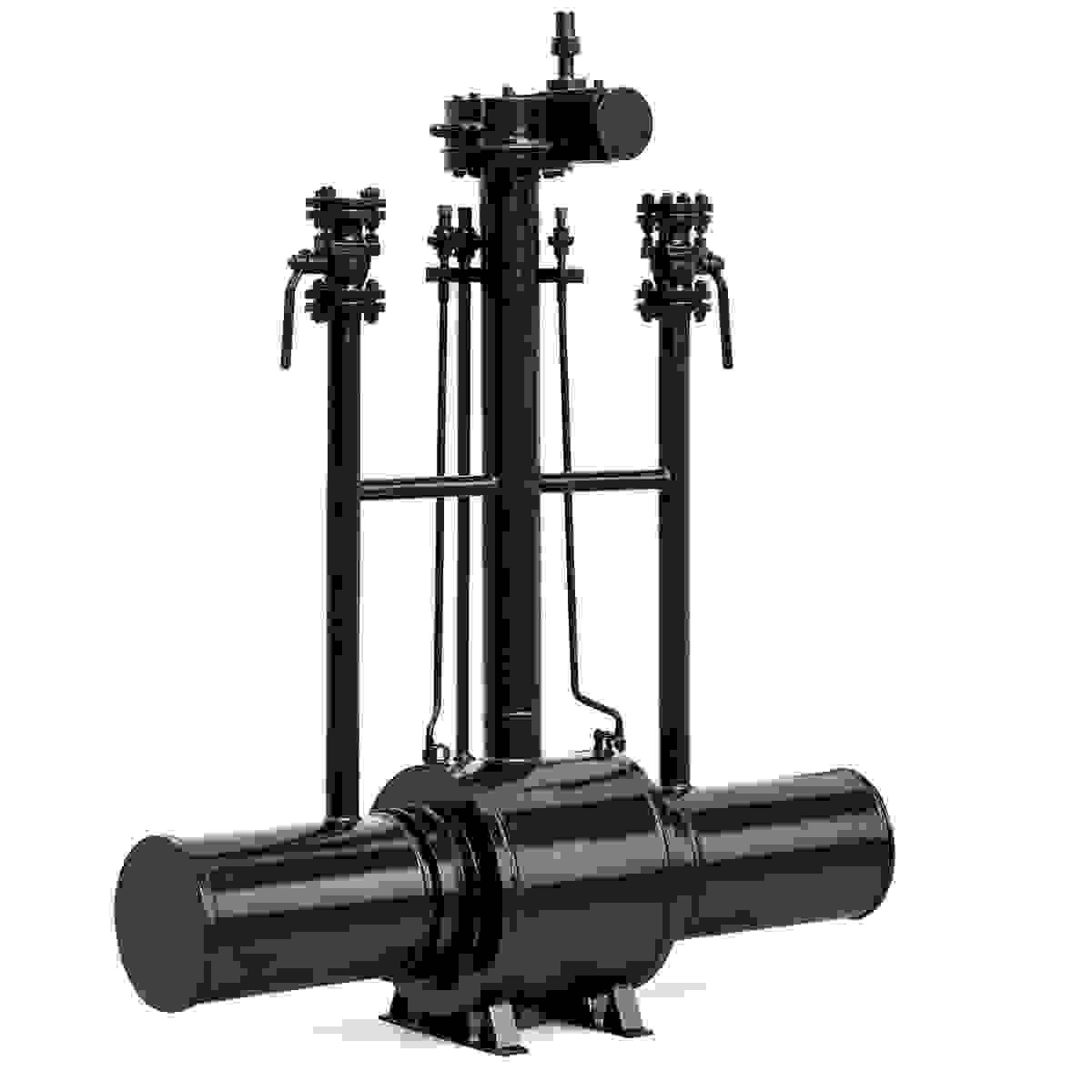

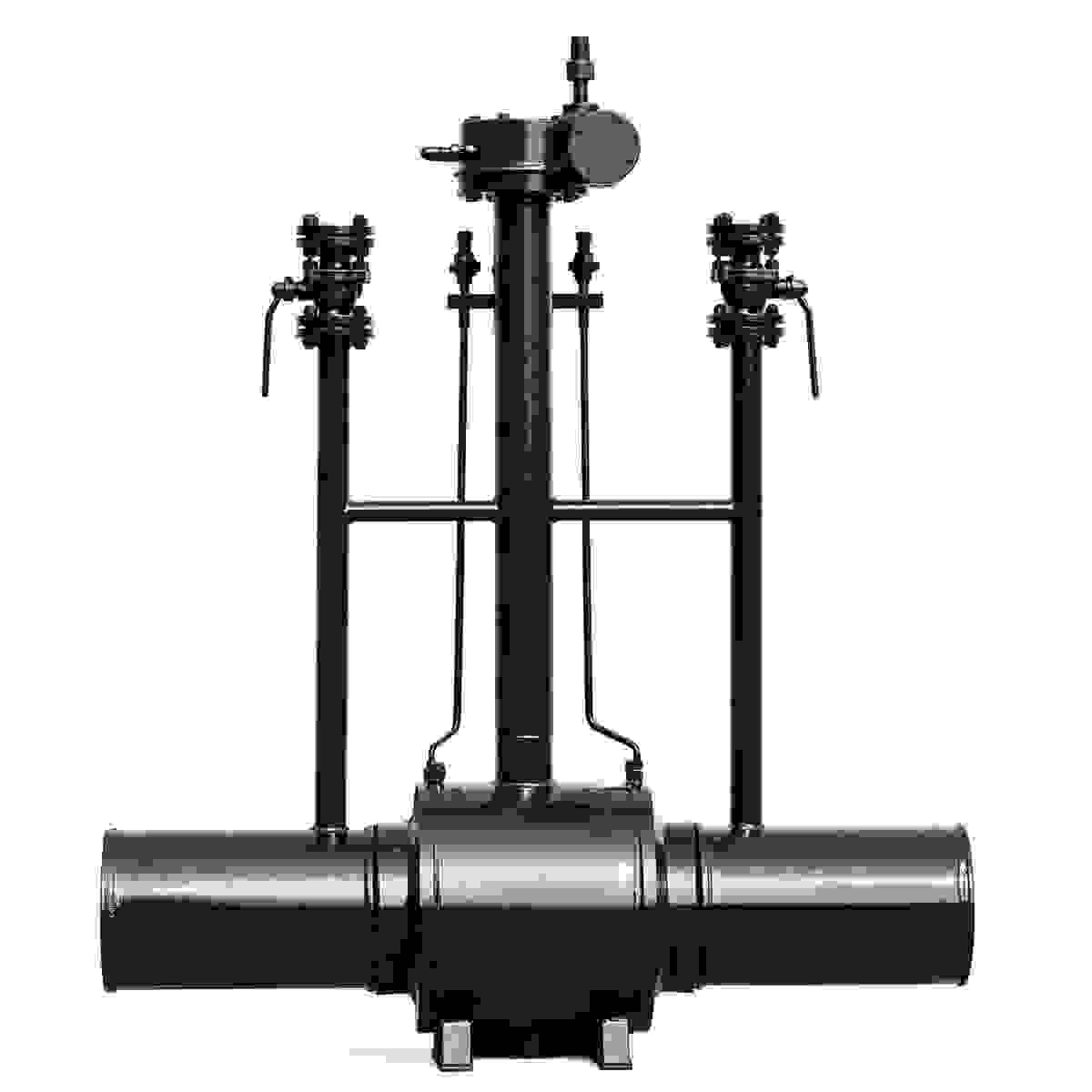

Forged Steel Fully-Welded Ball Valve
Fully-welded forged steel construction - zero external leak paths
Technical Parameters
| Size Range | DN15 - DN200 |
|---|---|
| Pressure Rating | PN16 / PN40 / Class150 - Class600 |
| Connection | Welded / flanged |
| Body Material | Forged steel (A105 / F304 / F316) |
| Design | Fully-welded body, no flanged joints |
| Seat | PTFE / PEEK / metal seal |
| Working Temperature | -29°C ~ 150°C (soft) / up to 425°C (metal) |
| Medium | Natural gas, oil, water & pipelines |
Key Features
- Fully-welded body - zero external leakage
- Suitable for buried & above-ground service
- High-pressure integrity
- For gas transmission & distribution pipelines
