Forged Steel Split-Body Ball Valve
Split-body forged ball valve - easy maintenance, high pressure rating
Technical Parameters
| Size Range | DN15 - DN200 |
|---|---|
| Pressure Rating | PN16 / PN40 / Class150 - Class600 |
| Connection | Flanged / welded |
| Body Material | Forged steel (A105 / F304 / F316) |
| Seat | PTFE / PEEK / metal seal |
| Working Temperature | -29°C ~ 150°C (soft) / up to 425°C (metal) |
| Medium | Natural gas, oil, water & pipelines |
Key Features
- Split-body design for easy in-line maintenance
- Forged body - superior strength & pressure capability
- Suitable for high-pressure gas & oil service

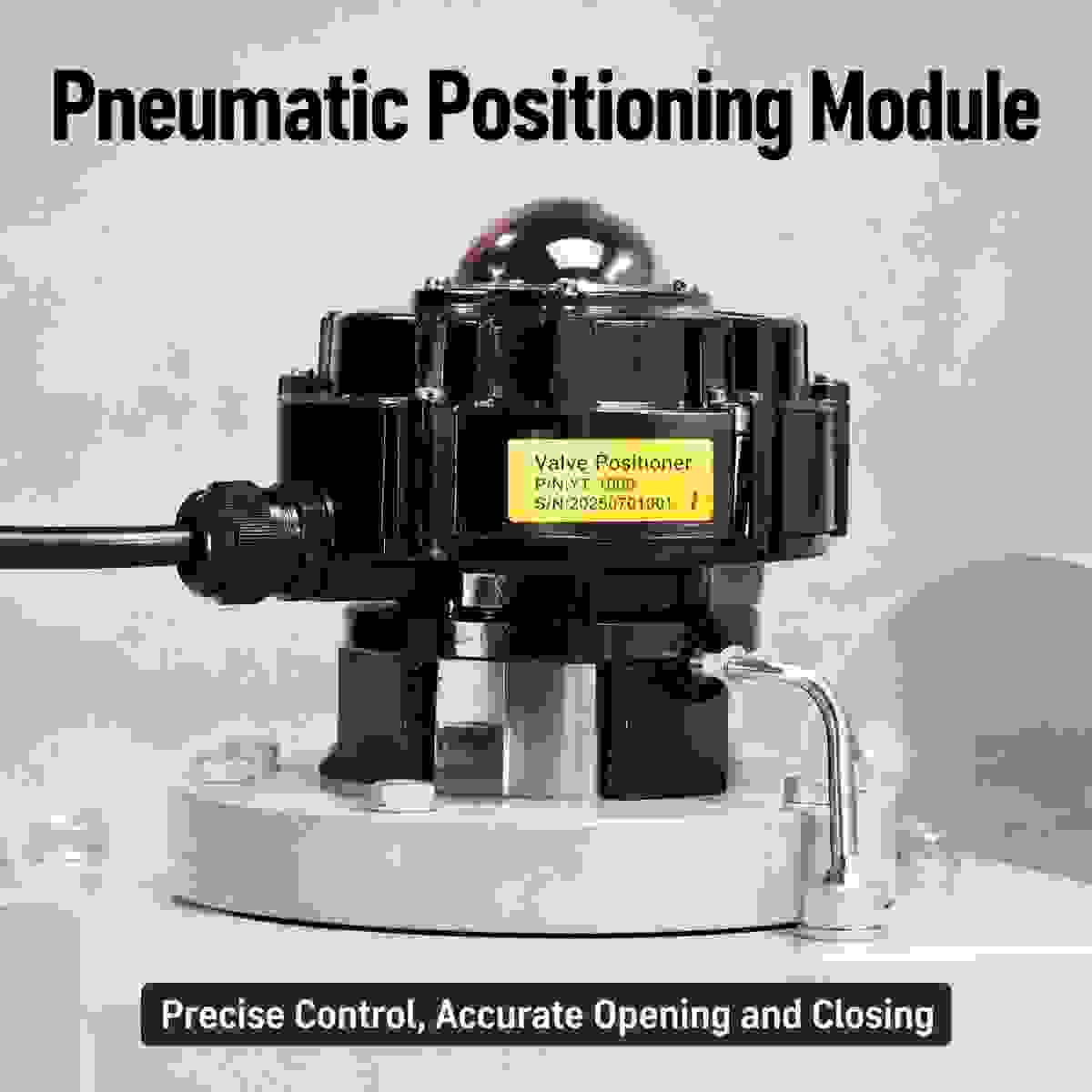

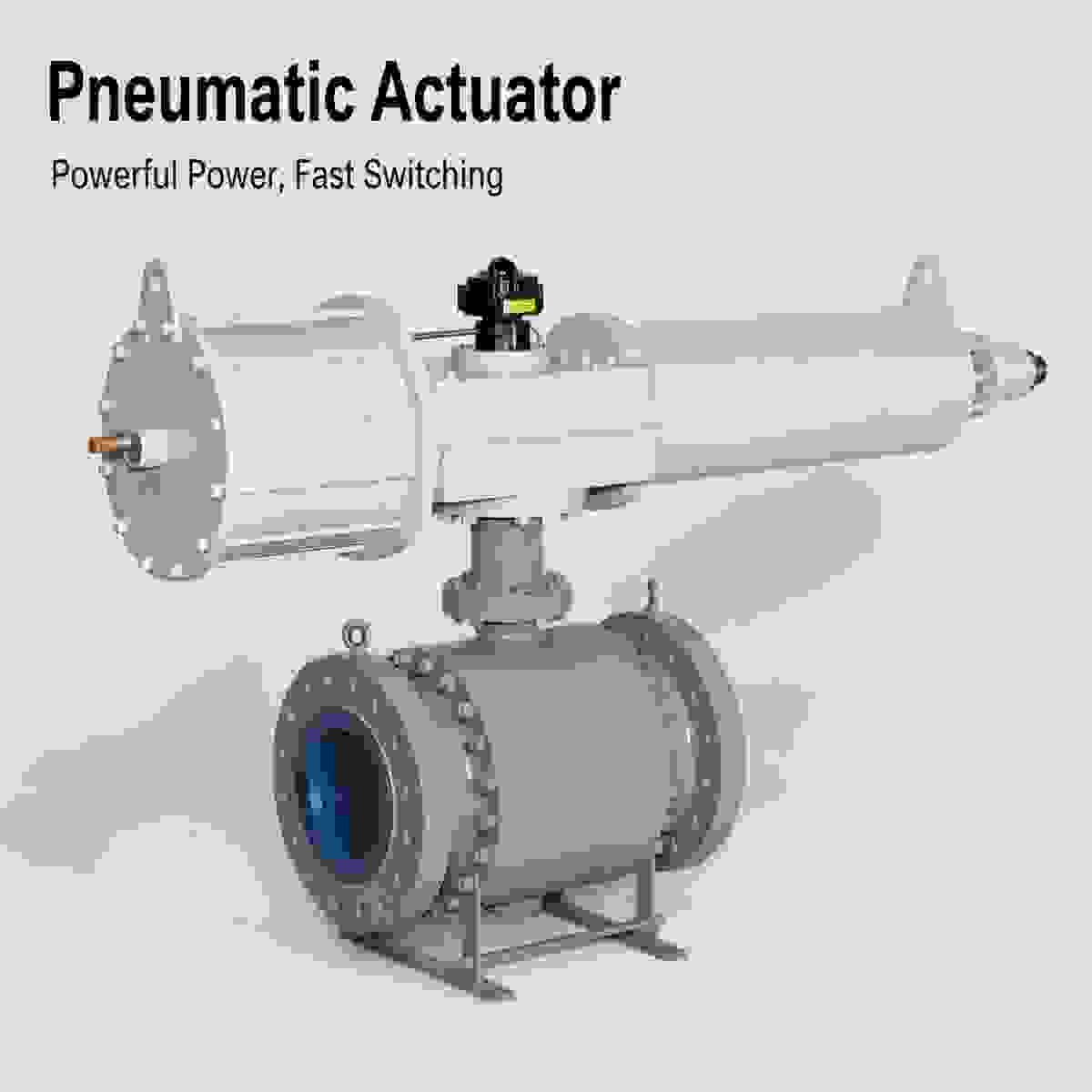

- Pneumatic actuator replacement & retrofitting supported
