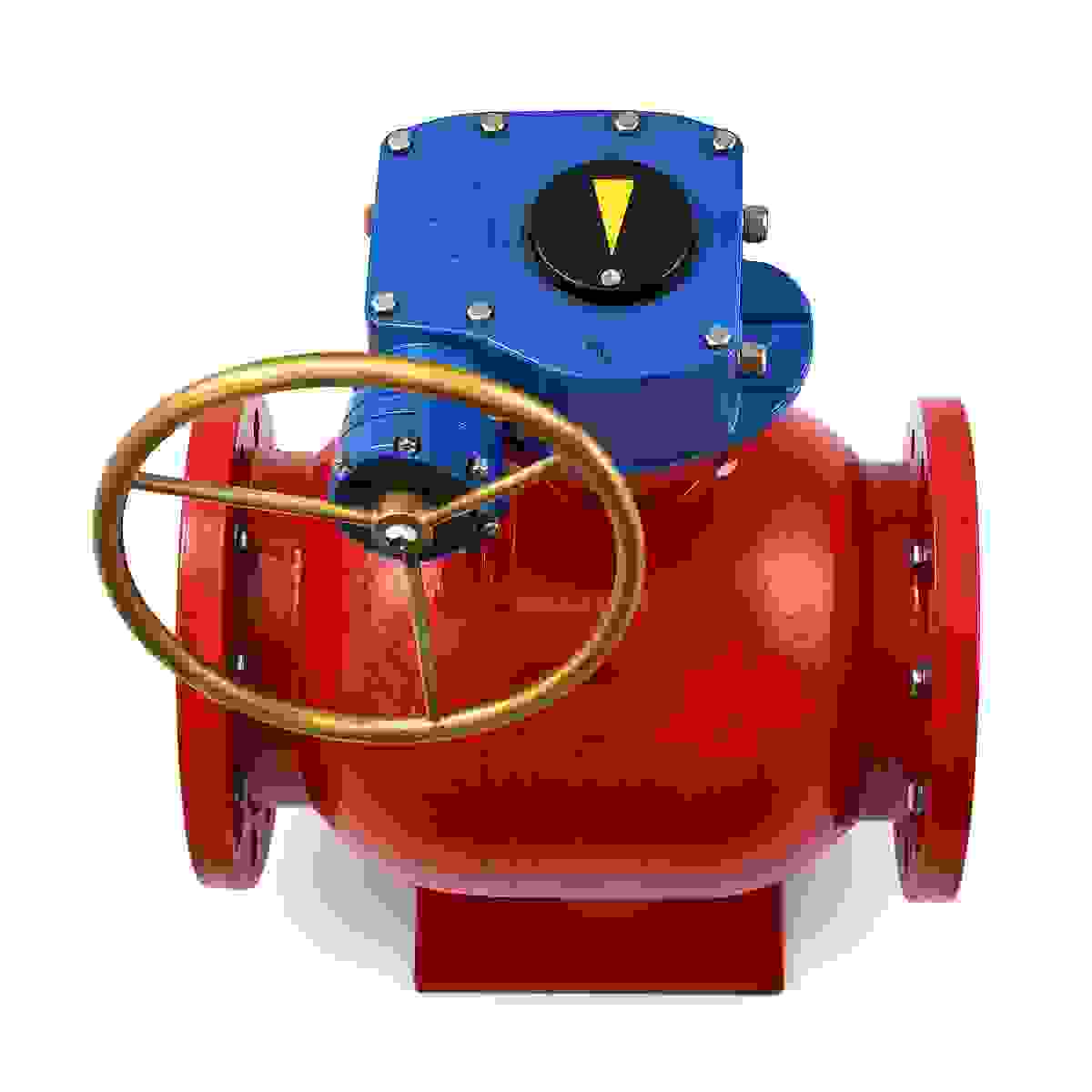

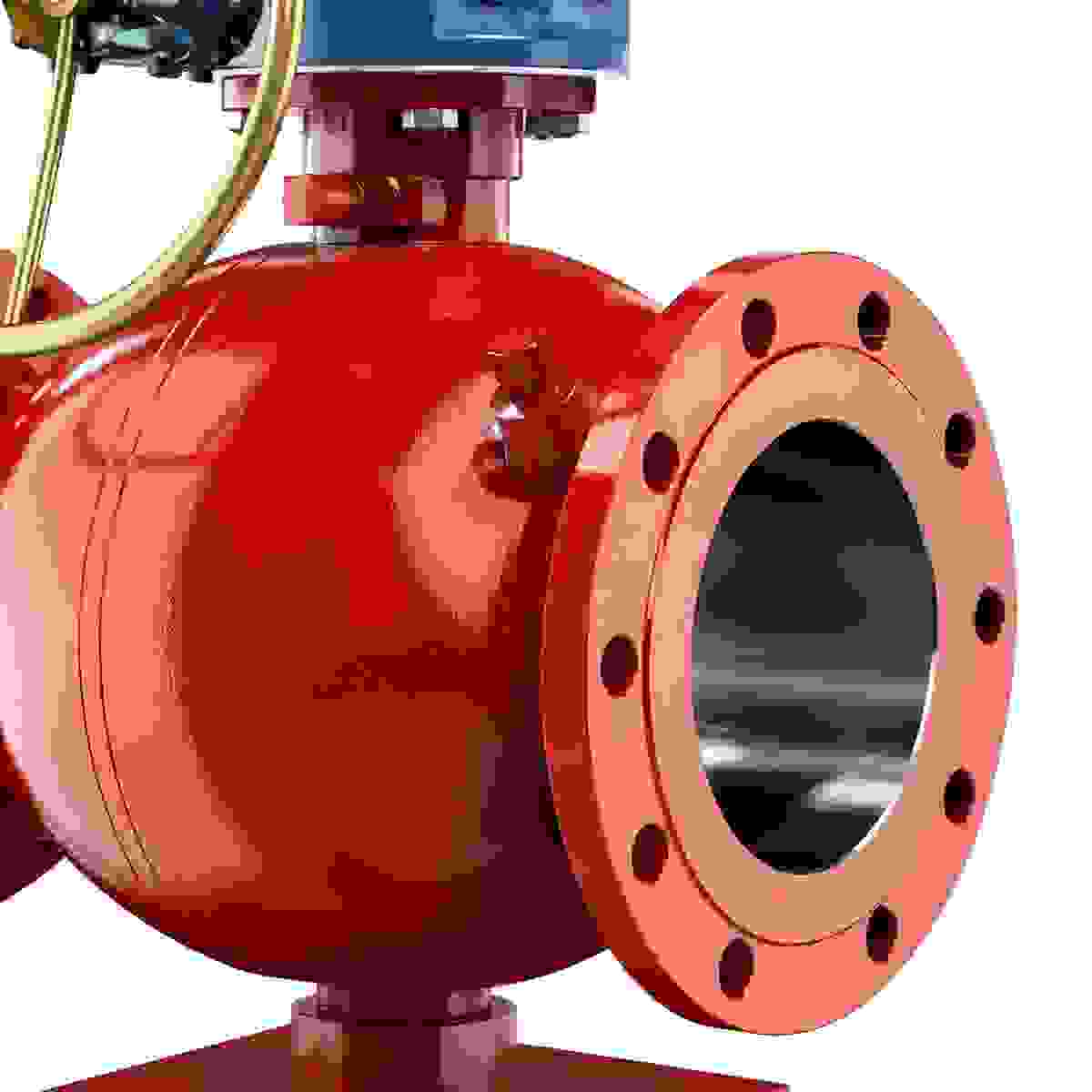

One-Piece Flanged Ball Valve
One-piece body construction for maximum rigidity & leak safety
Technical Parameters
| Size Range | DN15 - DN200 |
|---|---|
| Pressure Rating | PN16 / PN25 / PN40 |
| Connection | Flanged (RF) |
| Body Material | Cast steel / stainless steel |
| Seat | PTFE / RPTFE soft seat |
| Working Temperature | -20°C ~ 150°C |
| Medium | Water, gas, oil & general industrial media |
Key Features
- One-piece body, no leak path
- Floating ball design
- Low operating torque
- Fire-safe & anti-static design (optional)
